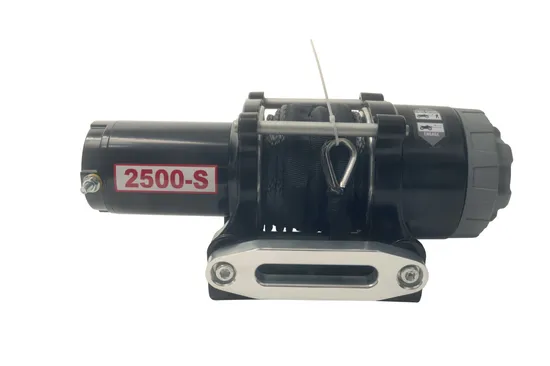

2500lbs OEM ODM Winches 4X4 Offroad Car Electric Winch

Product Description

This Prowinch 2500 lbs 12V Electric Winch offers powerful performance in a compact size. The winch is IP67 waterproof, which make it perfect for a wide variety of uses such as off-roading and towing. It is easy to install, which allows you to get set up quickly.
Rated line pulls: 2500 lbs. (1134 kg)
Gear reduction ratio: 136:1
Motor: Permanent magnet motor(Input Power)1.0 hp / 0.75kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Fairlead:Hawse
Remote Control Cable:3.1m
Overall dimensions: 12.99" x 4.61" x 4.84" (330mm X 117.2mm X123mm)
Drum size: Ø 2"x3.03" (Ø 50.8mm x 77mm)
Rope: Ø 3/16" x60'(Ø 4.8mm x 15.3 m)
Mounting bolt pattern :4.88"x 2.99"(124mm x 76mm)
12 DC Performance specs (First layer of drum)

Line pull	Line speed	Current	Pull by layer
lbs. (kg)	ft/min (m/min)	Amps (Max)	Layer/Lbs.(kgs)
0	18.4 (6.5)	17 amps	1/2500 (1134)
500 (227)	17.1 (5.2)	40 amps	2/2132 (967)
1000 (434)	13.5 (4.1)	70 amps	3/1858 (843)
1500 (680)	11.5 (3.5)	90 amps	4/1647 (747)
2000 (907)	9.2 (2.8)	115 amps	5/1479 (671)
2500 (1134)	8.2 (2.5)	145 amps

Multiple order qty:30
G.W/N.W:10.8/9.0kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches.
Standard accessories as below: FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 30-35days delivery time, but depends on the quantity !

---
