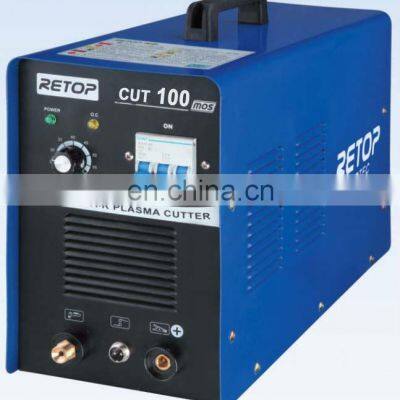

| Professional China inverter LGK100 air parts plasma cutter |
| ITEM | LGK-100 |
| Input Power Voltage | AC400V |
| Input Power Frequency | 50/60HZ |
| Rated Input Capacity | 25KVA |
| Max.Cutting Current | 100A |
| Rated Duty Cycle | 60% |
| Protection Grade | IP21S |
| No-Load Voltage | 315V |
| Dimensions | 440x760x660mm |
| Weight | 185KG |
| | |
(1)Advance inverter technology,energy-efficient,power frequency and no noise.
(2)Use compressed air as cutting gas source,cost-effective.
(3)Easy operation,narrow cutting seams,smooth incision,less deformation.
(4)Air pressure and cutting current adjustable.
(5)Circuit protection against over current,over voltage and over heat.
(6)Suitable for cutting carbon steel,stainless steel and alloy steel,copper,and aluminum ,etc.
Widely used in iron structure construction,manufacturing and automobile maintenance.
(7)Supplied complete with CUT torch,air regulator,pressure gauge,earth clamp,welding cable,
face mask and welding brush.
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
ITEM
| UNIT
| LGK-60
| LGK-100
|
Input power voltage
| V
| AC400V
| AC400V
|
Input power frequency
| HZ
| 50/60
| 50/60
|
Rated input capacity
| KVA
| 14
| 25
|
Max.Cutting Current
| A
| 63
| 100
|
No-load voltage
| V
| 280
| 315
|
Arc start
|
| Touch
| Touch
|
Insulation Grade
|
| B
| B
|
Protection Grade
|
| IP21S
| IP21S
|
Gas pressure
| mpa
| 0.4-0.6
| 0.5-0.6
|
Power factor
| cos
| 0.93
| 0.93
|
Rated duty cycle
| %
| 60
| 60
|
Dimensions
| mm
| 380x760x660
| 440x760x660
|
Weight
| kg
| 120
| 185
|
ACCESSORIES:
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
4m Cut Torth 1.2m earth clamp Mask and brush
CUT-30PCUT-30 CUT-60CUT-40
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
PACKAGE:
CERTIFICATIONS:
|
COMPANY INFORMATION:
plasma cutting ma plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine chine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.
With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.
Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.
We hope you will stay a while at our website. Please view our product offerings and get acquainted with us.
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger
Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...
WORKSHOP:
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
TRADE SHOW:
We took part in exhibitions many times. In 2013 and 2014, we have took part in METALEX in Thailand.
ABOUT SHIPPING:
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
Sample will be by Express. Order will be shiped by the Forwarder.
plasma cutting machine, plasma cutting machine, plasma cutting machine, plasma cutting machine,, plasma cutting machine
