550W Good Quality Drill Press Wood Lathe Combo From China Supplier

Product Description

Feature:
1. Unique 2 in 1 combo machine of drill press and wood lathe, all in one design saves cost and space.
2. Features a 550W induction motor, powerful, stable, and efficient.
3. Adjust the variable speed anywhere from 440 to 2580 RPM, you'll be able to turn workpieces at different speed.
4. Cast iron build prevents walking and wobbling during operation.
5. Emergency stop switch allows for an emergency power cut to prevent damage to the equipment or injury to the user.
Details:
1. It is equipped with a φ290mm work table when the machine is used as a bench drill press, which can process workpieces up to 305mm. The tool rest can be used as a material hold-down plate to fix the workpiece. Cross laser light helps for precise drilling.

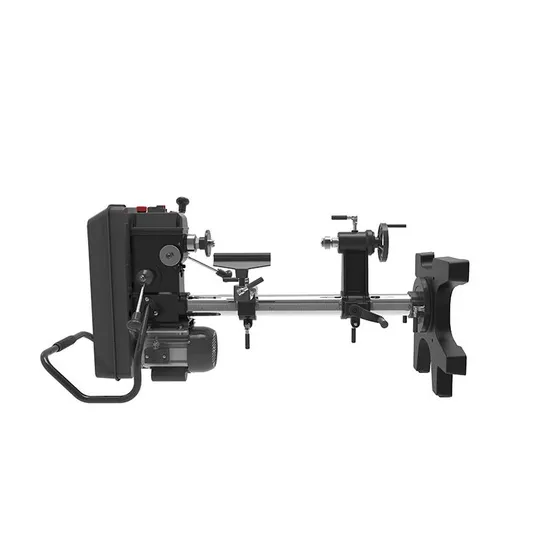

2. The work table of drill press can be removed and replaced with a chuck to fix the workpiece. Place the machine horizontally, replace the work table or chuck with the headstock, tool rest and tailstock, the machine will change to a wood lathe from a bench drill press.
3. Attack workpieces up to 350mm long and φ200mm diameter for turning bowls, cups, pens and other workpieces by process of drilling, cutting and sanding when the machine is used as wood lathe.
4. This wood lathe features an MT2 spindle and tailstock taper to tightly hold your workpieces, along with a 150mm tool rest for tool support during operation. The easy-to-use slide locking system makes adjustment to both the tool rest and the tailstock simple and precise.
5. The purpose of the headstock is to support one end of the workpiece and spin it with enough force for the tool to cut the wood.
6. The purpose of the tailstock is to support the non-driven end of the workpiece. Position the workpiece with the top of the tailstock to find the center of rotation.
7. Handles make it easy to stand the machine up or lay it down When it is used as a bench drill press or wood lathe.

drill press
Max Chuck capacity	16mm
Spindel travel	80mm
Taper	B16
NO. of speed	Variable speed
Speed range	440-2580RPM
Swing	305mm
Table size	φ290mm
Columm Dia	65mm
Base size	385*385mm
Machine Height	1110mm
wood lathe
Processing length	350mm
Central height	152.5mm
NO. of speed	Variable speed
Speed range	450-2500RPM
Swing	200mm
tool rest length	150mm
Spindle taper	MT2 1-8 UNC
Tailstock taper	MT2

YOU MAY ALSO NEED
BENCH GRINDER (MODEL#: TDS-200C4)
BELT AND DISC SANDER (BD61000)
BAND SAW (BS0902) 10" LOW SPEED WET SHARPENER (SCM8101)
COMPANY INTRODUCTION Weihai Allwin Electrical & Mechanical Tech Co., Ltd. , founded in 1955, with rich technical knowledge and production management experience, we are Chinese leading supplier of industrial motor, power tool and gardening machinery. We currently have 3 factories, 4 catagories, more than 500 products and totally 45 high efficiency LEAN manufacturing production lines. With sufficient production capacity, we can export over 2100 containers each year to more than 70 customers worldwide. Company overview
Workshop overview
PACKING & SHIPPING
FAQ
1. Are you factory? And where are your factory?
Yes, we are factory which are located at Weihai of Shandong province.
2. Can you accept smaller order?
Yes, our MOQ is 100pcs without customized color and package.
3. Can you accept OEM order?
Yes, we have produced OEM order for many famous brands for more than 20 years.
4. What's the price term?
Usually, our price is FOB Qingdao, but other terms are optional if you need.
5. What's the payment term?
The payment term is 70% down payment and 30% balance before shipment.
6. How about the guarantee?
We insure $2 million product liability every year to supply risk guarantee.And Products from the factory to provide one year after-sales warranty.

---
