C6256 Heavy Duty Horizontal Lathe Manual Metal Lathe

Product Description

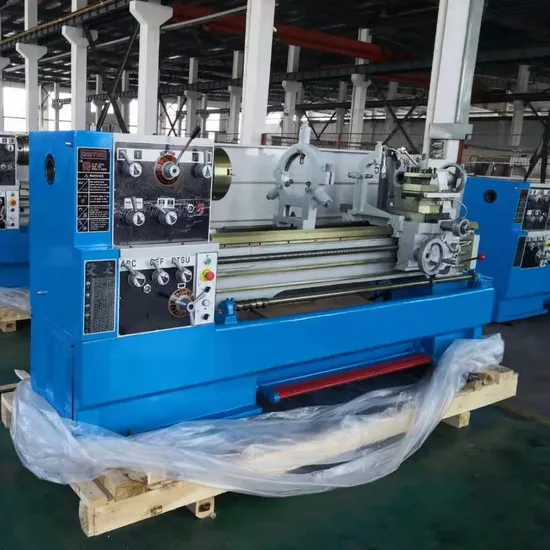

Product Picture
Specification Parameter

Items	Specification	Unit	C6251(V)	C6256(V)
Processing capacity	Max. swing over bed	mm	510	560
	Max. swing over cross slide	mm	305	335
	Max. swing overgap diameter	mm	735	785
	Effective length in gap	mm	200
	Distance between centers	mm	1000/1500/2000/3000
	Width of bed	mm	350
Headstock	Spindle bore	mm	80
	Spindle nose	/	ISO-D8
	Spindle taper	/	MT7
	Range of spindle speed	r/min	12steps, 25-1600
Feed box	Longitudinal metric feeds	mm/rev	35kinds, 0.059-1.646
	Longitudinal inch feeds	inc/rev	35kinds, 0.0022-0.0612
	Cross metric feeds	mm/rev	35kinds, 0.020-0.573
	Cross metric feeds	inc/rev	35kinds, 0.00048-0.01354
	Metric threads range	mm	47kinds, 0.2-14
	Inch threads range	/	60kinds, 2-112T.P.I
	Moudle threads range	/	39kinds 0.1-7M.P.
	Diametral threads range	/	50kinds 4-112D.P.
Carriage	Max. Travel of top slide	mm	130
	Max. Traval of cross slide	mm	316
	Max. section of of tool	mm	25*25
Tailstock	Quill diameter	mm	75
	Quill taper	/	MT5
	Quill travel	mm	180
Motor	Main motor power	kw	7.5
	Coolant pump motor	W	90
Packing size	Center Distance (1000mm)	cm	245*112*178
	Center Distance (1500mm)		295*112*178
	Center Distance (2000mm)		345*112*178
	Center Distance (3000mm)		445*112*178
Net /gross	Center Distance (1000mm)	kg	2050/2300	2150/2400
	Center Distance (1500mm)		2150/2450	2250/2550
	Center Distance (2000mm)		2450/2800	2550/2900
	Center Distance (3000mm)		2800/3250	2900/3350

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
