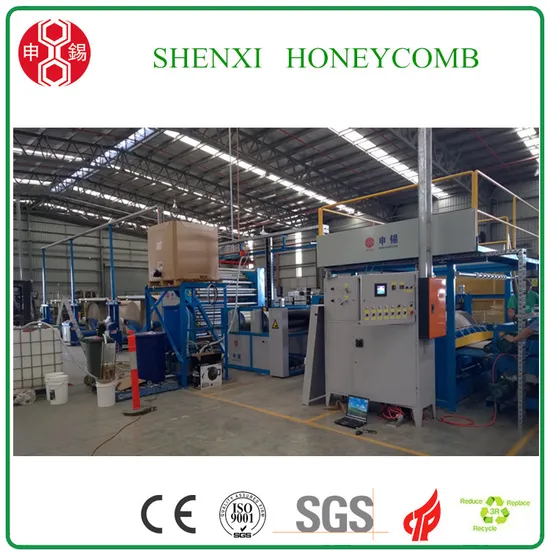

Hcm-1600 High Speed Full-Automatic Honeycomb Core Machine

Product Description

Honeycomb Core Machine Production introduction
Shenxi Honeycomb Machinery Factory, supply full automatic honeycomb core plant. from width 1600-2000mm. The whole production needs 2-3 persons while operating. make the honeycomb core from 8-100mm thickness and production capacity varies from 3-8 tons/ shift.
2.Features:
1. High Speed Cutting, max. 500 cuts/min.
2. Soft cutting, cutting noise down to 60Db, cutting current 6-8A
3. Quick glue roller change system, 20 minutes to change all gluing rollers
4. Automatic glue feeding system, no need to watch the glue feeding all the time.
5. Min. 8mm thickness of honeycomb make, to replace the corrugating board.

3. Process of honeycomb making
Paper unwind-glue applying--- Hot roller heating& conveying --- final gluing--- honeycomb cutting ---- honeycomb output

4. Technical data:

No.	Item	HCM-1600	HCM-1800	HCM-2000
1	Thickness of honeycomb paperboard	8-100mm
2	Width of paper core (before expanding, mm)	1600	1800	2000
3	Honeycomb core cutting speed	0-500 cuts/min.( according to paper and glue quality)
4	Cutting tolerance	+-0.1mm
5	Applicable paper	90-150gsm corrugated paper as core paper(Ring Crush Resistance: >=7)
6	Layers of core paper	6
7	Cell size	2 cell size , 6-30mm
8	Heating drying method	electrical heating/Steam Heating/ Hot oil
9	Total Engine power	20KW
10	Electric heating power	20KW
11	Installation power	40kw
12	Man power	3
13	Layout(mm)	25000X4000X2500	25000X4000X2500	25000X4200X2500
14	Weight	21Tons	23tons	25 tons
15	Power supply	Three phases, 380V/50Hz
16	Color of painting	Customer special made
17	Electric system	CE standard

---
