Colored PPGI Aluminum and Galvanized Coils Metal Double Deck Layer Two Profiles Ibr Trapezoidal Corrugated Iron Roof Sheets Roll Forming Machines

US$13,500.00
1 set
US$13,300.00
2 set
US$13,000.00
3+ set

Basic Info.

Model NO.
840
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Transmission Method
Hydraulic Pressure
Color
Blue or Accordng to Customers′request
Automation
Full-Automatic
Control System
Controlled by PLC
Langauge
English
Cutter Type
Hydraulic Cutting
Advantage
Easy Maintain
Forming Thickness
0.3mm to 0.6mm
Container Type
40 Gp
Colour
Blue or According to Customer Need
Guaranty
12 Months
Technical Support
Whole Life of Machine
Installation
Engineer Available Overseas
Description
Roll Forming Machine
Function
Use for Roofing
Transport Package
Naked Packing
Specification
6.5*1.2*1.2M
Trademark
Shengrui
Origin
Botou
HS Code
84629110
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
600.00cm * 120.00cm * 110.00cm
Package Gross Weight
3.500kg

Product Description

Product Description

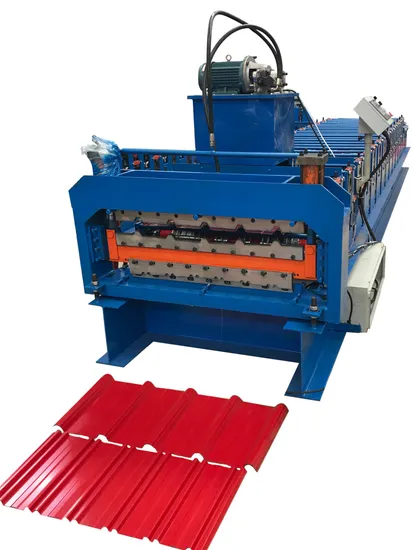

Corrugated and ibr sheets roll forming machine
The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.
Product Parameters

Technical data:Final technical data pls contact us ,we will send to you accoring to your drawing of size.
Roofing Sheets Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine)
No. Item Specifications
1 Coil Width 914mm/1000mm/1200mm /1250mm or according to your request
2 Diameter of shaft 70mm
3 Forming Speed 8-12meters/min
4 Middle plate 16mm
5 Material of shaft 45#steel with tempering
6 forming thickness 0.2mm-0.6mm
7 material of rollers 45#steel
8 Cutting type hydraulic -cutting
9 Main power 4kw/5.5kw /7.5kw/11kw according to machine
10 Main frame 350H steel
11 Control system PLC
12 Brand of electrical parts Delta
13 Manual decoiler 5 tons
14 Power 3 Phase,380 Voltage,50Hz
15 Dimensions(L*W*H) About 6.5*1.2*1.2M
16 Weight about 3 tons

Main parts of machine

Packaging & Shipping

workshop

Certifications

Successful Project

FAQ
(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
