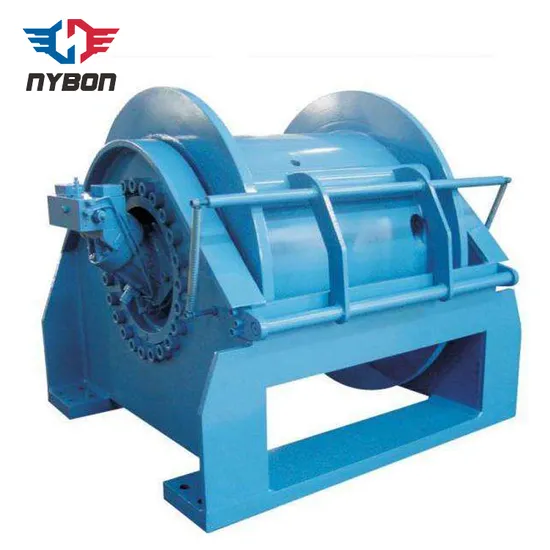

5ton 10ton Fast Hydraulic Winch with CE ISO Certification

Product Description

5ton 10ton Fast Hydraulic Winch with CE ISO Certification
Introduction:
Hydraulic winches, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are divided into:built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch.
Main structures:
hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.
Application:
Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery Lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs,rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
Features:
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other
components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) Low noise during operation;
4) Good economic performance.

Main Technical Parameter

Model	Pulling Force (kN)	Rope Speed	Total Displacement (ml/r)	Working pressure	Diameter of Rope (mm)	Rope capacity	Motor Type
NY2.5-8-65-9	8	0-40	553	13	9	65	BM3-100F120101
NY2.5-10-60-10	10	0-40	695	13	10	60	BM3-125F120101
NY2.5-12-60-10	12	0-35	884	12.5	10	60	BM3-160F120101
NY2.5-15-55-11	15	0-30	1105	12.5	11	55	BM3-200F120101
NY2.5-18-50-12	18	0-25	1389	12	12	50	BM3-250F120101
NY2.5-20-50-12	20	0-20	1769	10.5	12	50	BM3-300F120101
NY3-30-65-15	30	0-35	2125	15.9	15	65	XHS2-420D51
NY3-40-60-16	40	0-35	2711.5	16.4	16	60	XHS2-500D51
NY4-50-70-20	50	0-40	4365	16.3	20	70	XHS3-900D240101
NY4-60-68-21.5	60	0-40	5428.5	16	21.5	68	XHS3-1000D240101
NY5-80-100-24	80	0-40	9080	15.6	24	100	XHS3-1800D240101
NY5-100-90-28	100	0-40	11039	16	28	90	XHS3-2000D240101
NY7-200-150-40	200	0-25	27434	17.8	40	150	XHS8-5000D480101
NY79-300-155-44	300	0-16	57776	17	44	155	XHS7-3600D480101
NY79-350-150-46	350	0-16	68768	16.8	46	150	XHS7-4300D480101
NY79-400-145-48	400	0-16	79808	16.5	48	145	XHS7-5000D480101
All of the paramters can be customized based on your requirement

Application
Company Profile
Packaging & Shipping
Q.Can i have a price?After getting your parameters,we will offer you a accurate price.Q.Can I customize products?Yes,we can offer OEM and ODM servicesQ.What's your delivery period?Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period; Q.Do you have engineer oversea installation service?Yes; We have;Q.What kinds of products do you have?All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;Radial/Flat Gate Hoist; Steel Gate; etc.Q.If we need urgently, can you delivery soon?After we confirming the parameters and sign the order, we will give priority to the emergency order to meet your needs;Q.Do you offer after-sales service? We have after-sales team to support you.Q.How long will it take to ship to my country?For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option. Dear friends, in order to offer you the suitable winches, please provide the following parameters:
1. What place Do you use it?
2. Use for lifting or dragging?
3. Whether it needs to be equipped with a pump station?
4. Load and Rope capacity?
5. Power voltage ?

---
