Insulation paper slitting and rewinding machine

Product Description

Product Description

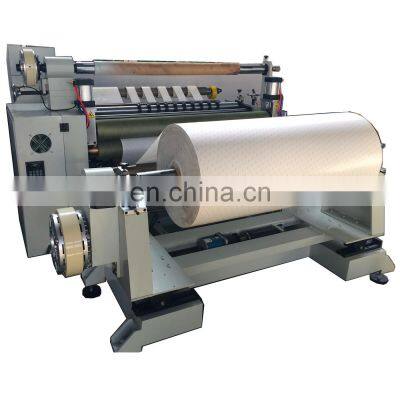

Insulation paper slitting and rewinding machine
1. Technique Data
Machine Speed : 110m/min
Max material feeding width : 1800mm
Feeding Diameter : 800 mm
Film Diameter : 400mm
Rewinding diameter : 450mm
Slitting accuracy :±0.1mm
Voltage:380V 50HZ
Main Motor Power :3kw (1 motor power) ( if running reversible need 2 motor)
Total Power: 8kw
Raw material Max hole diameter: 3”
compress air source:(0.4-0.6)Mpa(customer-owned)
Finished products Min. Width by standard slitting :25MM
Main Machine size :2600*2300*1300mm
Feeding Machine size : 2150*880*780mm
Weight : 2.5T
2. Function Profile
1) frequency control of motor speed, operation more easy. Control more accurate.
2) Double receiving roller center take up , rewinding
3) Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use
4) Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M
5) Independent fan waste discharge.
6) If Double motor configuration,The scroll of rewinding can be positive and negative transfer .
DP-1300/1600/1800 multifunction laminating and slitting machine
Funcional characteristics:
This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Model	1800 multifunction laminating and slitting machine	1600 multifunction laminating and slitting machine
Max Feeding Width ( mm )	1800	1600
Main Engineer Power ( KW )	6	6
Speed (T/M )	80	80
Feeding diameter ( mm )	1000	800
Rewinding diameter ( mm )	450	450
precision ( mm )	±0.10	±0.10
Power	380V 50HZ	380V 50HZ

Slitting Machine More Detail Picture

---
