Commercial Stainless Steel Egg Classifier Machine Egg Grading Sorting Machine

Product Description

Machine introduction:
Egg grading machine is also called: (egg weighing and grading equipment, egg weighing equipment, egg grading equipment, automatic egg weighing equipment, automatic egg grading equipment, breeding egg weighing equipment, breeding egg grading equipment, embryo egg weighing equipment, embryo egg Grading equipment): production of egg disinfection equipment, egg light inspection equipment, weighing and grading equipment.Weighing and grading equipment-the conveyor system sends the eggs to the weighing system. According to the weight of the eggs and the pre-set egg weight level, the robot divides the eggs into different areas. Various specifications of equipment can be adapted to the needs of chicken farms and hatcheries of various scales.

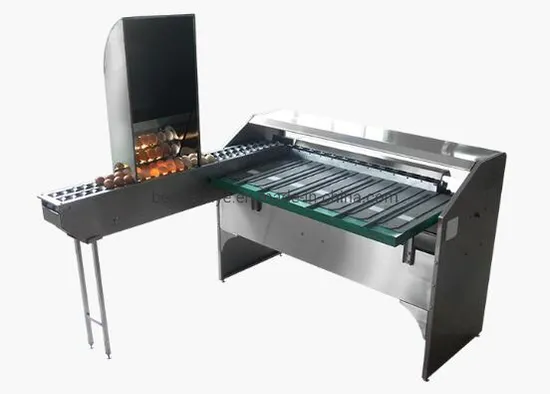

Machine picture:
Machine parameters:

Product name	power	Voltage	Yield	Dimensions	Suitable	type
Egg grading machine	200w	220v	5000 pcs/hour	1700*1450*1000mm	Chicken, duck	Weight classifier

Machine schematic:
This machine adopts engineering-grade accessories and exquisite structure, which greatly improves the practicability of the machine. The egg grading machine is suitable for weight grading of eggs, duck eggs, preserved eggs, and many kinds of eggs.
Features of weight classifier:
1. The frame structure is made of stainless steel, the equipment has light weight, good strength and beautiful appearance;
2. The spare parts are consistent, no difference, and have good interchangeability;
3. Knife conveying, lever weighing principle, accurate weighing and convenient adjustment;
4Eccentric sprocket and compensation sprocket transmission structure to improve efficiency;
5 The use of cam gear structure and chain transmission, so that the egg weighing tool is not damaged;
6 Self-rolling rubber wheels, automatically adjust the arrangement of eggs;
7 Light inspection hood, visible through light inspection to detect the quality of eggs (optional)
8 It can be connected with an egg washing machine to form an egg production line.
Machine product display:
Process flow:
1 Manual egg laying: simple and fast;
2 Light inspection: light bulb light inspection, pick out unqualified eggs such as cracks, loose yellow, deformities, and sharp skins (optional);
3 Grading: The mechanical weighing system grades the eggs by weight;
4 Collect eggs: Collect eggs in different sections of the egg tray.
The operation of the egg grading machine is very simple. After the operators (1-2 people) put the eggs on the conveyor line, the equipment can automatically distribute the eggs to different collection baskets according to the weight of the eggs. The equipment has reliable performance and easy operation. , High efficiency, and the eggs are not easily broken during the grading process.

---
