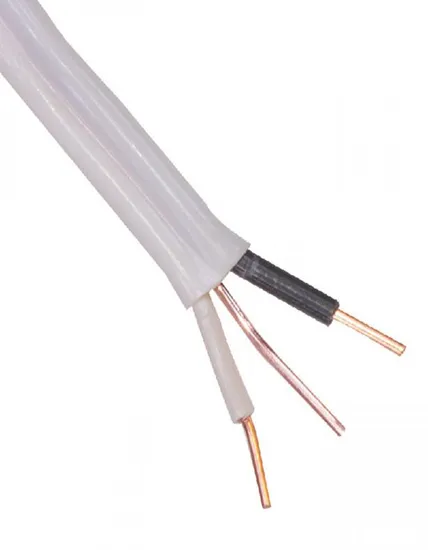

cUL Listed RW90 Nmd90 14/2 14/3 75m Electrical Wire Canadian Market Factory Price for Distributor

Product Description

The largest CUL UL cable expert manufacturer in China
First factory in NMD90, TECK90, RPV90 mass production factory
Annual Export amount more than $500million, Yearly manufacturing capacity 5 Billion RMB.
Cable solutions to your particular requirements
Strict quality control system.
Strong technical support (technical data, drawing, etc.)
Free sample is available with economic express fee.


NM-D 90- copper conductor or AL8000 Conductor-
3 or 2 CONDUCTOR SIZES #14 AWG THRU #2 AWG XLPE/300 V C.S.A, (90°C)
1. Application:

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C
for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be
properly stored above 0°C for 24 hours prior to installation.
The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.

SPECIFICATIONS
Type NMD90 cable complies with:
ASTM C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1

CONSTRUCTION
NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.

Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in the Table below:
JACKET COLOUR CODE - Typical Application Guide
•WHITE - General Residential Wiring
•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)
•ORANGE - No. 10 AWG General Residential Wiring
•YELLOW - No. 12 AWG General Residential Wiring
•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter Applications

CABLE PRINTING
12 AWG 2 CDRS BLACK/WHITE NMD90 NYLON 300 VOLTS FT1

NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external
lubricants, resulting in reduced labour and materials costs.

Conductor			Insulation		Ground		Approx. Jacket thickness		Approx. Cable Dia.		Approx. Cable weight		Allowabl e Ampaciti es 30°C
Size (AWG)	Cores	Strands	Inches	mm	Size (AWG)	Core	Inches	mm	Inches	mm	Ib/ 1000ft	Kg/ km
14	2	1	0.034	0.86	14	1	0.030	0.76	0.388*0.192	9.86*4.88	68	101	25*
12	2	1	0.034	0.86	14	1	0.030	0.76	0.422 x 0.209	10.71 x 5.30	86	129	30*
10	2	1	0.034	0.86	12	1	0.030	0.76	0.481 x 0.230	12.21 x 5.84	122	182	40*
8	2	7	0.040	1.02	10	1	0.045	1.14	0.636 x 0.312	16.15 x 7.92	208	310	55
6	2	7	0.051	1.30	8	7	0.045	1.14	0.792 x 0.370	20.12 x 9.40	315	468	75
14	3	1	0.034	0.86	14	1	0.030	0.76	0.345	8.77	86	128	25*
12	3	1	0.034	0.86	14	1	0.030	0.76	0.381	9.69	114	169	30*
10	3	1	0.034	0.86	12	1	0.030	0.76	0.427	10.85	163	242	40*
8	3	7	0.040	1.02	10	1	0.045	1.14	0.570	14.47	275	408	55
6	3	7	0.051	1.30	8	7	0.045	1.14	0.695	17.65	421	627	75
3	3	7	0.051	1.30	6	7	0.080	2.03	0.925	23.48	799	1189	115

Hebei huatong wires&cables Group Co.,ltd.It was established in 1993. Whichcovers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. Wegot ISO,UL,TUV,KEMA,CE and many other certifications.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

---
