Ronds Wireless Industrial Accelerometer for Bearing Fault Analysis

Product Description

Main features: Measure both vibration and temperature data Battery lifetime: 2 years (vibration value once every five minutes, time waveform once every 2 hours) CE / EX certification available One key upgrade for firmware Easy installation: no wiring Online training and technical support
Main technical parameters

RH560 Wireless data collector
Input and output
Communication protocol	2.4GHz IEEE 802.15.4
Number of RH505 connecting	30~60 units according to real condition
Analysis Frequency(Hz)	500/1K/2K/5K/10K/15K/20K
Number of Sample	1K~128K (1K=1024)
Electrical and Structure Parameter
Power Supply	220V AC
Dimension (L * W * H)	203 mm × 82 mm × 260 mm
Weight	3 kg
Mounting	Hanging or fixation through holder
Environmental Parameter
Working Temperature	-40~70 °C
IP grade	IP66

RH505 Wireless Vibration and Temperature Integrated Sensor
Vibration Measurement Parameter
Vibration Range	±50 g
Linearity	1%
Frequency Response	2Hz~15kHz (±3dB)
Analysis Frequency(Hz)	500/1K/2K/5K/10K/15K/20K
Number of Sample	1K~128K (1K=1024)
Sampling rate	Max. 51.2KHz
Measurement types	Overall value, FFT, time signal, Envelop FFT
Temperature Measurement Parameter
Temperature Range	-40~125 °C
Temperature Accuracy	±1 °C
Electrical and Structure Parameter
Power Supply	Lithium - thionyl chloride battery, 3.6V, 3.3Ah
Communication Method	2.4GHz IEEE 802.15.4
Dimension	46 mm × 94 mm (Diameter * Height)
Weight	188 g
Environment Parameter
Working Temperature	-40~70 °C
IP grade	IP67

Certificates

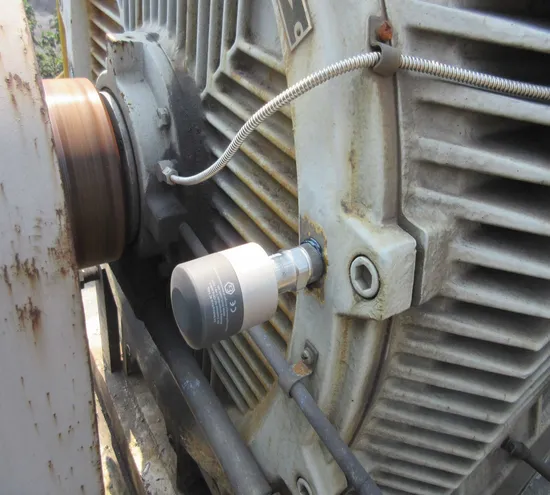

Product application pictures
Remote Diagnosis Center and Laboratory
Exhibition and Customers
RONDS Team
30 professional vibration analysts
Diagnosis experts with more than 20 years' experience
CAT III vibration analysts
CAT II vibration analysts
Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members

---
