Stainless Steel Double Cone Mixer Pigment Powder Chemical Powder Mixer

Product Description

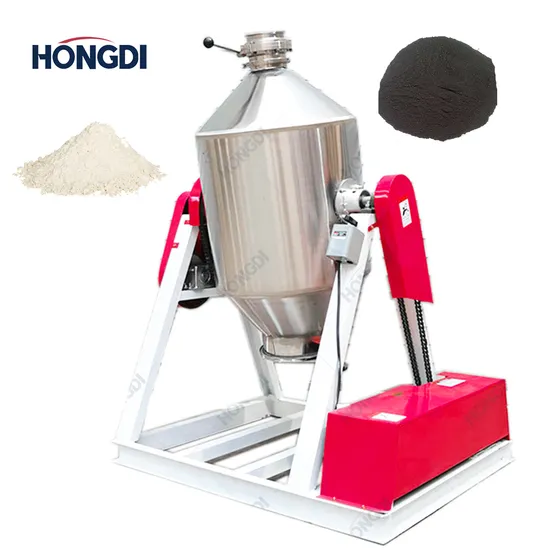

The double cone mixer is widelyand importantly used in variousindustries. It is suitable for mixing food materials such as flour,cocoa, coffee, spices and additives. In the pharmaceutical industry,it is suitable for mixing Chinese and western raw materials, westernmedicine and proprietary Chinese medicine. In the feld of feedprocessing, double cone mixer can effectively mix powder additivesand improve the quality and uniformity offeed.

Detailed Display

Schematic diagram of the whole machine
Double cone mixer is English mixing all kinds of powdery materials, material contact part is made of stainless steel 304, the bracket is made of carbon steel, sturdy and stable.Rewind switch
By simply triggering the handle can achieve the mixer's forward mixing and reverse mixing, quickly change the direction of rotation of the mixer, easy to operate and flexible control.
Butterfly Valve Discharge Port
Adopting butterfly valve to discharging can precisely control the discharging speed of materials, meanwhile, it has good sealing, which can effectively prevent the leakage of materials in the process of mixing.
Feeding port
Adopting normal pressure manhole cover can easily and quickly enter the material into the mixer through the manhole cover to improve the efficiency of mixing operation.

Stainless steel double cone mixer-Butterfly valve version
Model	HDJX-15A	HDJX-30A	HDJX-50A	HDJX-100A
Gross volume(L)	30	60	100	200
Operating voltage(V)	220/380	220/380	220/380	380
Motor(kw)	3	3	3	3
Barrel diamater(cm)	40	40	50	60
Barrel length(cm)	60	80	85	105
Inlet(mm)	250	250	300	300
Discharge port diameter(mm)	108	108	108	133
Discharge height(mm)	300	300	300	380
Overall diameter(mm)	1020*700*1200	1020*700*1400	1070*700*1500	1250*900*1650
Note:There is an error of 1-3 cm in the manual measyrement size which is subject to the actual product

Product Photos

FAQ

Q 1: Where is your factory located?
A 1: Our factory is located in Zhengzhou, China. If you have travelling plans, we warmly invite you to visit our factory.
Q 2: Why do you choose your products?
A 2: We have 15 years of professional production experience, professional team and advanced equipment. Product quality is guaranteed and price is favourable.
Q 3: After receiving the machine, is there any installation instruction? How long is the warranty period?
A 3: Yes, we have a professional after-sales team that will promptly solve any problems you encounter during installation and production. We provide one year warranty service.
Q 4: What are the transport methods for the goods?
A 4: The common transport modes are sea transport, air transport, land transport, etc. You need to choose the suitable transport mode according to the nature of the goods, quantity, delivery date and other factors.

---
