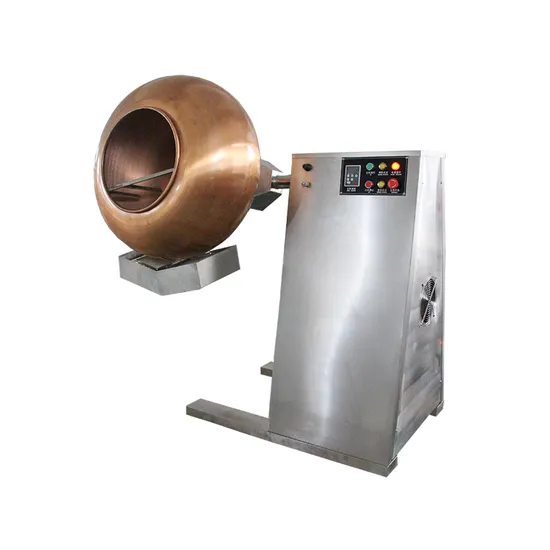

Automatic Discharge Nuts Caramelizing Caramel Peanut Almond Caramelized Nuts Coating Making Machine

Product Description

BYQ series Sugar coating machine is mainly used for coating film for tablet, pill,granule,crystal, capsule and seed in different industries. The machine can also coat film, make powder into granules or pills, polish and mix without replacing any equipment components.
When the machine is working, the coating pot, reducer and motor are on the same center line of axis, the electric motor drives the coating pot to rotate clockwise through the reducer, and the materials in the pot roll under the centrifugal force and friction. The pot is equipped with an agitator, so that the materials can be evenly stirred.If the materials in the pot are sprayed with moistening agent, adhesive or coating medium, the procedures of coating, granulating, polishing and blending can be completed. This machine uses the method of single arm to support the pot body. the pot body is driven by the motor and reducer so that the single arm drives the pot body to make directional rotation movement.When the opening of the pot is turned to the top, the charging process can be carried out. When the opening of the pot is turned to the bottom, the materials in the pot can be poured out quickly. If the user adds the charging device, the loading and unloading automation can be realized, which greatly reduces the heavy labor of manual loading and unloading. A gas heater is installed under the bottom of the pot, which improves the heating speed of the pot and reduces the production cost.

Model	BYQ-600	BYQ-800	BYQ-1000
Diameter(mm)	600	800	1000
Rotation speed(r/min)	8-35	8-32	8-32
Motor power(kw)	0.75	1.5	1.5
Unloading power(kw)	0.18	0.75	0.75
Heating method	Gas stove heating (natural gas, liquefied gas)
Capacity(kg)	10-25	30-50	50-70
Dimension(mm)	1310*1420*1030	1550*980*1550	1650*1100*1650
Weight(kg)	275	335	365

FAQ
How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation

---
