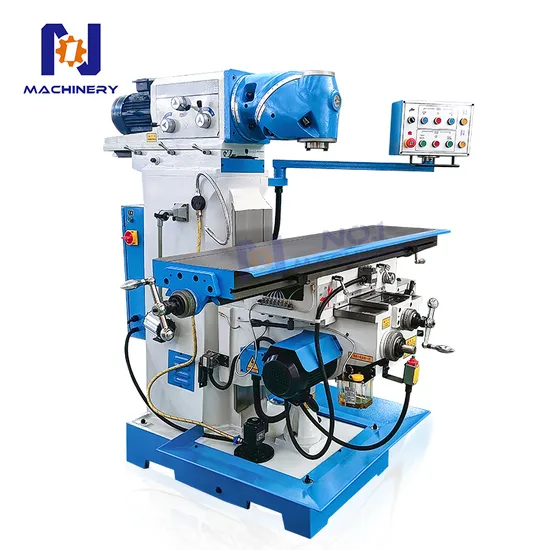

X6232 Heavy Duty Milling Machine CE New Turret Universal Milling Machine Low Price

Product Description

Product Description

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Product Parameters

PARAMETER ITEM	UNIT	X6228	X6232
Size of worktable	mm	1200x280	1500x320
Table travel	mm	650x280x350	1000x320x400
T-shaped groove for table	-	3	3
Spindle Taper	-	7:24 ISO40	7:24 ISO40
Spindle speed range	rpm	35-1600	35-1600
Distance from spindle face to table	mm	110-490	120-520
Distance from center of horizontal axis to table	mm	0-500	1000x360x360
Table feed range	mm/min	18-308 (8steps)	18-308 (8steps)
Rotation angle of milling head	.	360°	360°
Main motor power	kw	2.2	2.2
Feed motor power	kw	0.75	0.75
Weight of machine tool	kg	1300	1700
External dimensions	mm	1500x1400x1730	1700x1560x1750

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
