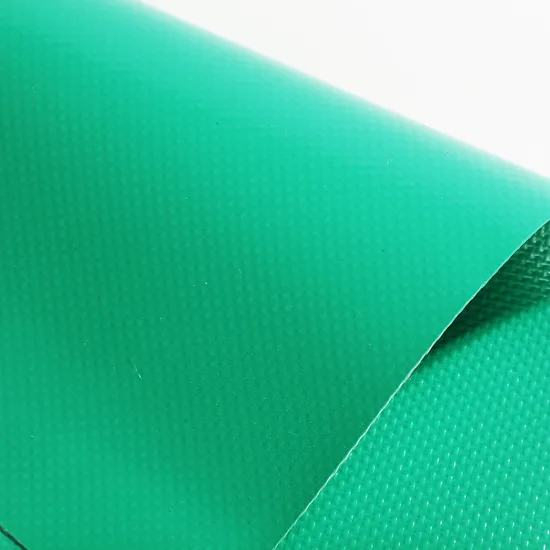

High-Quality Waterproof PVC Tent Fabric for Outdoor Use

Product Description

Product Description

Properties	Units	Test method	590gsm	610gsm	650gsm	680gsm	750gsm	800gsm	850gsm
			Average value	Average value	Average value	Average value	Average value	Average value	Average value
Base Thread Density	Denier	DIN53350	1000D*1000	1000D*1000D	1000*1000D	1000*1000D Low-wick	1000*1000D	1000*1000D	500*500D
Base Fabric Density	Thread/inch	DIN53351	9*9	14*14	20*20	20*20	23*23	23*23	18*17
Finished Fabric Weight	Gram/m2	DIN53352	600	610	650	680	750	800	850
Base Fabric Weight	Gram/m2	DIN53352		125	175	175	200	200	75
Thickness - finished product	um	DIN53352	42	52	52	52	60	62	65
Break Strength Warp	N/5cm	GB/T1040	2500	1800	2500	2500	3000	3000	1250
Break Strength Weft	N/5cm	GB/T1040	1100	1600	2200	2200	2800	2800	1150
Tear Strength Warp	N/5cm	DIN 53363	25	200	280	280	300	300	150
Tear Strength Weft	N/5cm	DIN 53363	300	180	250	250	270	270	125
Adhension	N/5cm	DIN 53357	280	80	90	90	120	120	100
Temperature range	ºC	DIN 53368	-30 ~ +70	-30 ~ +70	-30 ~ +70	-30 ~ +70	-30 ~ +70	-30 ~ +70	-30 ~ +70
Fire Retardant		Self-extinguishing				Both sides lacquring	both sides lacquring	Embossing

Description	polyester fabric	weight(g/sqm)	width(m)
PVC laminated tarpaulin	1000D*1000D 30*30	750	0.5-5.1
	1000D*1000D 20*20	680	0.5-5.1
	1000D*1000D 20*20	650	0.5-5.1
	1000D*1000D 20*20	610	0.5-5.1
	1000D*1000D 9*9	580	0.5-5.1
	1000D*1000D 18*18	550	0.5-5.1
	500D*840D	450	0.5-5.1
	200D*500D 18*12	340	0.5-5.1
PVC coated tarpaulin	1000*1000D 30*30	1050	1.6-3.45
	1000*1000D 30*30	900	1.6-3.45
	1000*1000D 23*23	850	1.6-5.1
	1000*1000D 23*23	750	1.6-5.1
	1000*1000D 20*20	680	1.6-5.1
	1000*1000D 20*20	650	1.6-5.1
	1000*1000D 20*20	700	1.6-5.1
	1000*1000D 20*20	610	1.6-5.1
Knife coated tarpaulin	1500*1500D 30*30Panama	1350	1.6-3.45
	1500*1500D 30*30Panama	1250	1.6-3.45
	1000*1000D 30*30Panama	1050	1.6-3.45
	1000*1000D 23*23	850	1.6-3.45
	1000*1000D 20*20	650	1.6-3.45
	1000*1000D 20*20	610	1.6-3.45
