1/4HP High Efficiency Brushless DC BLDC/Ec Air Cooler Fan Motor for Outdoor Air Conditioning Conditioner Units

Product Description

Product Description

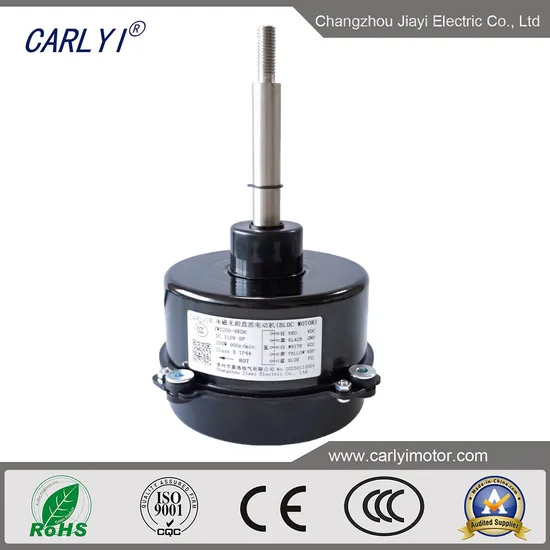

1/4HP High Efficiency Brushless DC BLDC/EC Air Cooler Fan Motor for Outdoor Air Conditioning Units
The above mentioned specification is representative specification,can also be designed and manufactured according to customer requirements.
Main Technical Data of 1/4HP High Efficiency Brushless DC BLDC Air Cooler Fan Motor for Outdoor Air Conditioning Units:

Model	Voltage (V)	Current (A)	Speed (r/min)	Output (W)	Input (W)	Insulation
ZWS65-10A	Vdc 310-360	0.27	300-1500	65	81.5	B
ZWS80-10A	Vdc 310-360	0.32	300-1500	80	100	B
ZWS120-10A	Vdc 310-360	0.49	300-1500	120	150	B
ZWS150-10A	Vdc 310-360	0.61	300-1500	150	188	B
ZWS200-10A	Vdc 310-360	0.81	300-1500	200	250	B
ZWS230-10A	Vdc 310-360	1.1	300-1500	230	313	B

Low noise	IP 44 protection level , Locked rotor protection, Open phase protection, Over-voltage protection, Over-current overheating protection	High efficiency, Wide speed adjustment range, VSP mode	Programmable

Materials :
1. Silent bearing
2. Driving board
3. Copper wire
Are you tired of dealing with noisy, power-hungry air conditioner fan motors in your home or office?
If so, we have the perfect solution for you: our brushless high efficiency conditioner fan motor.
Our motor is designed to be more energy-efficient than traditional fan motors, which means you'll save money on your power bills while enjoying the same cooling performance. Plus, it's brushless, so it's much quieter than standard motors and has a longer lifespan.
Here are some of the benefits of choosing our brushless high efficiency conditioner fan motor:
1) Energy-efficient: Save money on your power bills while enjoying cool air.
2) Quiet: Say goodbye to noisy fan motors that disrupt your peace and quiet.
3) Long lifespan: Our motor is designed to last for years, so you won't have to worry about replacing it anytime soon.
4) Environmentally-friendly: Our motor is designed with sustainability in mind, so you can feel good about choosing an eco-friendly option
We are looking forward to helping you stay cool and comfortable all year round.
Application
Application:
Air purifier
Chiller
Split air conditioning outdoor unit
Air source heat pump
Refrigerator
Freezer
Cold room
Field of Application :
1. Commercial refrigeration
2. Household refrigeration
3. Refrigerated freight systems
4. Air purification Product Parameters
Performance:
DC 310V
Power output up to:250W
Variable operation speedDrawing of 1/4HP High Efficiency Brushless DC BLDC Air Cooler Fan Motor for Outdoor Air Conditioning Units:
Recommendation
1/4HP High Efficiency Brushless DC BLDC/EC Air Cooler Fan Motor for Outdoor Air Conditioning Units:

	Model	Voltage	Current	Speed	Output	Input	Insulation
		(V)	(A)	(r/min)	(W)	(W)
	ZWS65-10B	Vdc 310-360	0.27	300-1500	65	81.5	B
	ZWS80-10B	Vdc 310-360	0.32	300-1500	80	100	B
	ZWS120-10B	Vdc 310-360	0.49	300-1500	120	150	B
	ZWS150-10B	Vdc 310-360	0.61	300-1500	150	188	B
	ZWS200-10B	Vdc 310-360	0.81	300-1500	200	250	B
	ZWS230-10B	Vdc 310-360	1.1	300-1500	230	313	B

	Model	Voltage	Current	Speed	Output	Input	Insulation
		(V)	(A)	(r/min)	(W)	(W)
	ZWS65-10A	Vdc 310-360	0.27	300-1500	65	81.5	B
	ZWS80-10A	Vdc 310-360	0.32	300-1500	80	100	B
	ZWS120-10A	Vdc 310-360	0.49	300-1500	120	150	B
	ZWS150-10A	Vdc 310-360	0.61	300-1500	150	188	B
	ZWS200-10A	Vdc 310-360	0.81	300-1500	200	250	B
	ZWS230-10A	Vdc 310-360	1.1	300-1500	230	313	B

Terms
Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 50% deposit in advance, 50% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery
Company Profile

Changzhou Jiayi Electric Co., Ltd was established in 2013. Is a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. The company has a skilled R & D team, and has more than 10 years of motor research and development, design, production and sales experience.With an annual output of 1 million motor production capacity. The new generation of BLDC motors and EC motors developed by CARLYI use a unique high flux and shock absorption design, coupled with high-quality bearings, so that the motor has more torque in the same. CARLYI branded motors have been approved by CCC, ISO9001, CE, RoHS certification.

Packaging & Shipping
Packing and Shiping:
FAQ
FAQ of 1/4HP High Efficiency Brushless DC BLDC Air Cooler Fan Motor for Outdoor Air Conditioning Units:
Q1: Are you factory?
A: Yes, we have been in designing and providing excellent motors for customers. Our factory production is all under ISO9001 quality management system.
Q2: How long you could prepare samples?
A: Normally 3 days if we have the sample in hand. If customized one, about a week around
Q3: How about batch order production?
A: Normally 15-30 days, the customized or newly developed products may take more half month.
Q4: Do you inspect the finished products?
A: Yes, we do inspection according to ISO9001 standard and ruled by our experienced QC staff.
Q5: What advantage do you have?
A: For the motors, we have long enough of 18months guarantee, and for the service, we offer 24 hours technical support and barrier-free communication.

---
