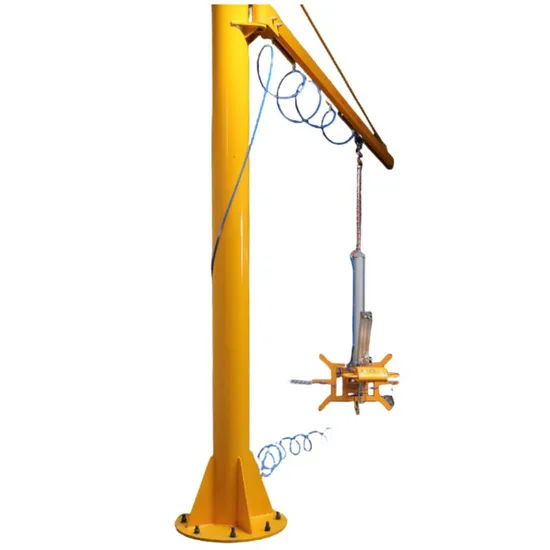

High-Quality CE Pillar Column Glass Vacuum Lifter with Jib Crane for Lifting Glass Jib Crane Hoisting Equipment

Product Description

Professional manufacturers for glass machinery, such as grinding machine, vacuum lifter, storage shelf, laminated furnace, and accessories(grinding wheels, sucker, EVA, etc)

Model	TYRSY-XZ250/350/450
Power	Manual or Customized Motor
Regular Column Height	4350mm
Regular Arm Length	5000mm
Net Weight	600 kg(s)
Work Range	270-degree or 360-degree
Operation Method	Manual Control

Features: 1. Simple to install, convenient to operate, cost-efficient
2. Customized column height, arm length, and working load
3. Manual operation with 270-degree rotation work range
4. Vertical Lifting Range 1.2M.
5. Can be added with a telescoping handle
6. Remote control with 90-degree rotation work range
7. Safety loading capacity 350kg for 4 suction cups and 450kg for 6 suction cups, maximum loading capacity can achieve 500kg with a customized pump.
8. Column type, wall type, and I-steel type, various types to select
9. Widely used in glass manufacturing, processing, and assembling line

Package:
Other Series:
Certificates:
Other items:
Company Introduction:
Founded by two metal equipment industry-leading companies in 2017, Qingdao TOYOCC Industry Co., Ltd is specialized in developing the glass machine supplying business.
Both our parent companies have more than 20 years of experience in the glass machine manufacturing industry, with excellent production capacity and outstanding quality control. Our factories cover a total area of 128, 608 square meters, with 500 technical staff, as well as 60 research and development engineers.
Our mission is to provide"more reasonable price with the same quality, and same price with higher quality".

---
