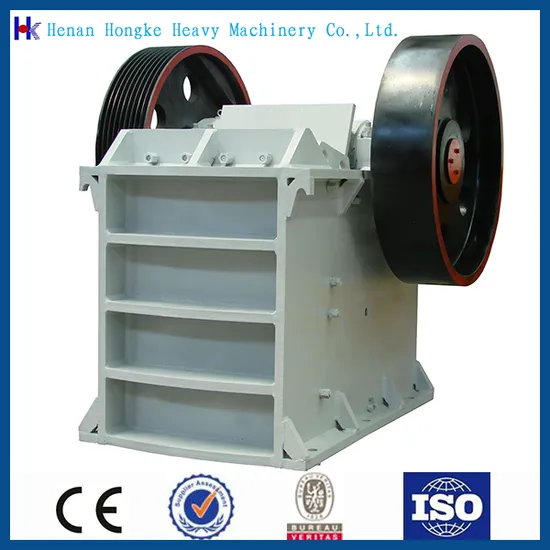

2016 New Type Jaw Crusher for Stone

Product Description

1.Jaw Crusher Introduction:
This series jaw crusher has properties of large crushing ratio, even granularity, simple structure, reliable operation, easy maintenance, and low cost. So this kind of jaw crusher can be widely used in mining, metallurgy, building material, highway, railway, water project, chemical industry, etc, for crushing various materials with compression strength less than 320MPa.
2.Jaw Crusher Features:
1. The deep crushing cavity increases the feeding capacity and output capacity;
2. High ratio of crushing, homogeneous final product size;
3. Adjusting the discharge opening through gasket, more convenient, it can meet different customers' requirements.
4. Lubricate system is safe and reliable, easy to change the spare parts;
5. Simple structure, easy maintenance, consumption cost is lower;
6. Energy-saving, for one set saving about 15%-30%;
7. Little noise and dust.
3.Jaw Crusher Working Principle
Electromotor drives eccentric shaft rotating by belt pulley, moving jaw is forced to move to or leave from fixed jaw, material will be squeezed, twisted and grinded, material will be crushed to smaller size and final product will fall down and discharged from discharge port.

Type	Maximum Feed (mm)	Adjusting Range (mm)	Production Capacity(t/h)	Spindle Speed (r/min)	Motor Power (kw)	Dimensions (L*W*H) (mm)
PE150*250	125	10-40	1-5	285	5.5	8758*758*850
PE250*400	210	20-80	5-20	310	15	1108*1142*1392
PE400*600	340	40-100	16-65	275	30	1700*1732*1653
PE500*750	425	50-100	45-100	275	55	2050*1860*2145
PE600*900	500	65-160	50-120	250	55-75	2792*2168*2250
PE750*1060	630	80-140	52-180	250	110	2660*2430*2800
PE900*1200	750	95-165	140-260	200	132	3380*2870*3330
PE1000*1200	850	150-265	315-340	200	132	3480*2876*3330
PE1200*1500	1020	150-300	400-800	180	200	4200*3300*3500

Inquiry Service:
Your email address and telephone will not be shared or published!
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
I hope you can tell me these details,i will give you the best quotation ASAP ,thanks, Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!

---
