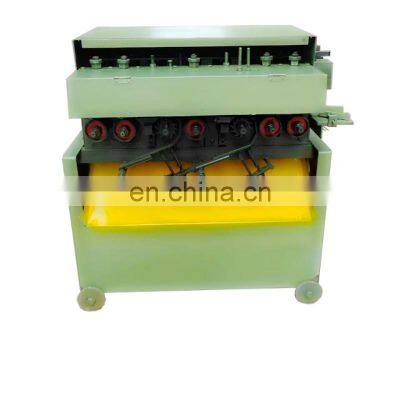

Factory price automatic bamboo filament shaping machine
The whole bamboo toothpicks production line brief introduction:
1.Above 10sets machines are the whole production line, 0.8 million/8hr, about 100kg.
2.It need 5-7 workers. Industry electric 380V. It need use 12 kilowatt hour per hour.
3. If you want to increase the capacity, you only need add one set of toothpick shaping machine is ok.
The whole bamboo toothpicks production line working process:
Bamboo—Bamboo sawing—Bamboo dissection—Bamboo slicer —Bambooofilament shaping machine
—Bamboo filament set-size machine—Toothpicks set-size machine—Polishing machine — Toothpick sorting machine—Toothpick shaping machine—Sharpening machine
The whole bamboo toothpicks production line pictures and main parameter:
NO.
| Name
| Motor(KW)
| Weight(KG)
| Dimension(mm)
|
1
| Bamboo sawing machine
| 2.2
| 70
| 900*510*930
|
2
| Bamboo dissection machine
| 3
| 550
| 3000*850*1200
|
3
| Bamboo slicer
| 3.7
| 460
| 1460*660*1000
|
4
| Bambooo filament shaping machine
| 8.1
| 450
| 1050*650*990
|
5
| Bamboo filament set-size machine
| 0.75
| 75
| 1500*650*990
|
6
| Toothpicks set-size machine
| 2
| 230
| 900*600*800
|
7
| Polishing machine
| 0.37
| 150
| 1400*1200*1500
|
8
| Toothpick sorting machine
| 0.55
| 65
| 530*1000*800
|
9
| Toothpick shaping machine
| 2.75
| 260
| 900*570*1010
|
10
| Sharpening machine
| 0.37
| 65
| 750*500*950
|
The whole line of automatic bamboo toothpick production line:
Automatic Bamboo sawing machine:
Automatic Bamboo dissection machine
Automatic Bamboo slicer
Automatic Bambooo filament shaping machine
Automatic Bamboo filament set-size machine
Automatic Toothpick shaping machine
Automatic Toothpick sorting machine
Automatic Polishing machine
Automatic Sharpening machine
My friend, we manufacture wooden and bamboo toothpick prodution machine,wooden and bamboo chopsticks production line, bamboo incense sticks production line, and BBQ bamboo sticks production line, if you are interested in any production machine, pls contact with us.
Ms barbara
Mobile:0086-15238020768
Tel: 0086-0371-65863108
Fax:0086-0371-65863109
>>
