High Quality Tire Cutter / Waste Tyre Rubber Recycling Machines

Product Description

High Quality tire cutter / Waste Tyre Rubber Recycling Machines

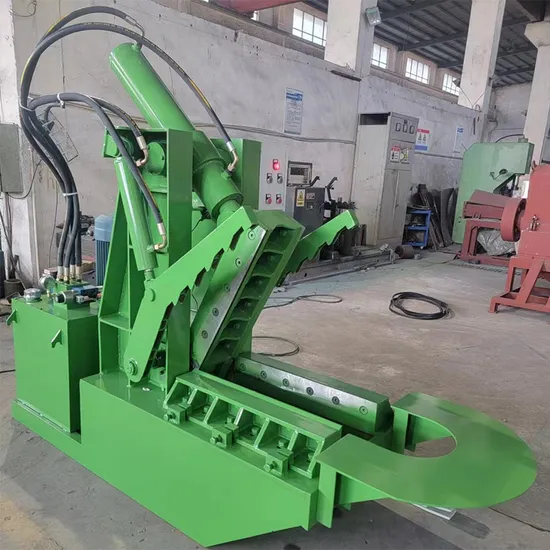

Product Description This machine is used to cut large steel wire tires, fiber tires and other waste tires that have been removed side steel rings. It can cut all kinds of waste tires into various rubber blocks of required specifications, which is convenient for the crushing of subsequent equipment. Its main components include: motor, rotating platform, loading rack, tool holder, fixed tool holder, frame, cylinder, hydraulic station and control box.
Structure and principle The machine is composed of motor, hydraulic system, working cylinder, a pair of blades, frame and rotating mechanism.
The basic principle is: the motor drives the hydraulic system and the cylinder, the tire is placed between the two blades, the locking arm is rotated by the locking cylinder work, and the tire between the two blades is tightened, and then the cutting cylinder work makes the moving blade rotate, prompting the two blades to form a shear trend, to achieve the shear effect.

Product Features The equipment is cut to large, good shear effect, fast shear speed, low energy consumption, small volume, easy to move, because of the use of hydraulic system, it is easy to operate and safe.

Detailed Photos
Product Parameters

Model	QDJ-1200
output	1-2t/h
power	7.5kw
The suitable Tyre	650-1200mm
weight	1500kg
Dimensions	2010*850*1600mm
Tool material	Cr12MOV
Tool specification	700×80×22mm

Application
FAQ

---
