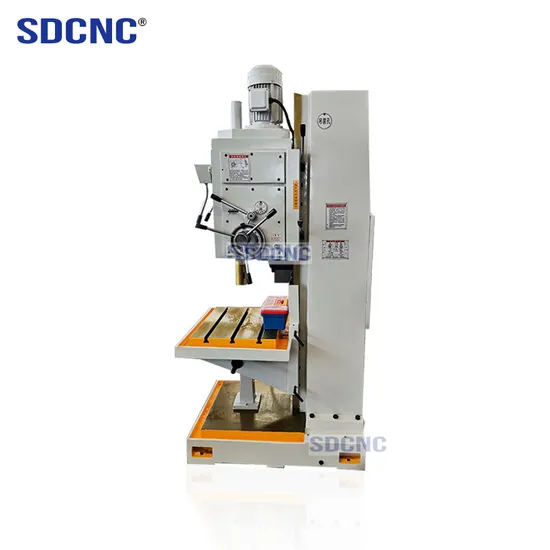

Z5150 Square Column Vertical Drilling Machine Small Vertical Drilling and Tapping Machine

Product Description

Product Parameters
Technical parameter Square column vertical drilling machine, is a universal universal machine tool. This machine tool can be used for
drilling, reaming, end surface, drilling sunk holes, boring, tapping and other operations. Spindle tapping automatic
reversal and micro-dynamic feed, used for blind hole and deep hole is very convenient. The machine tool has high
efficiency, good rigidity, high precision, low noise, wide variable speed range, centralized operation, novel
appearance, convenient use and maintenance.
Product main technical specifications:
Square pillar vertical driling machine, is a universal machine. The machine can be used for drilling, reaming,
countersink face, drilling head hole boring, tapping and other operations. Sonde tapping automatic reversing and
micro-feed, for the
blind hole and deep hole is extremely convenient.
The machine is high efficiency, good rigidity, high precision, low noise, wide range of transmission, operation focus,
novel appearance, easy to use and maintenance.

Specifications	Z5140	Z5150
Max drilling dia	40mm	50mm
Spindle taper	MT4	MT5
Spindle stroke	250mm	250mm
Headstock travel(manual)	200mm	200mm
Spindle speeds	31.5-1400r/min 12 steps	31.5-1400r/min 12 steps
Feed range	0.056-1.80mm/r 9 steps	0.056-1.80mm/r 9 steps
Table size	560x480mm	560x480mm
Table vertical travel	300mm	300mm
Max.distance spindle nose to table	750mm	750mm
Main motor power	3kw	3kw
Overall dimension	1090*905*2465mm	1090*905*2465mm
N/W	1300kg	1350kg

---
