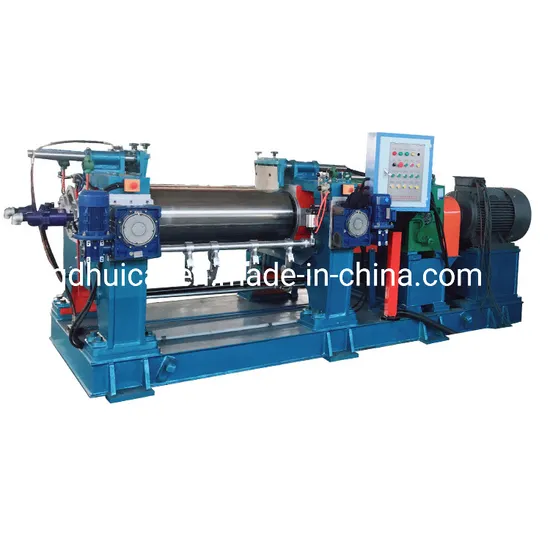

Good Quality Rubber Mixing Mill

Product Description

Why choose our company?
1. AAA grade credit enterprise.
2. With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.
3. Exported to more than 20 contries with good quality. Example: The good year company in Chile...
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Why choose our this machine?
1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.

Model	XK-160	XK-230	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560	XK-550B	XK-660
(mm)Working diameter of rolls	160	230	250	300	3360	400	450	560/510	550	660
(mm)Working length of rolls	320	600	620	750	900	1000	1200	1530	1500	2130
(m/min)Front roll surface speed	8.95	10.21	14.1	15.1	16.25	18.65	24.26	27.72	27.94	28.6
Friction ratio	1:1.35	1:1.19	1:1.17	1:1.25	1:1.25	1:1.27	1:1.27	1:1.2	1:1.22	1:1.24
Max.nip(mm)	4.5	7	8	10	10	10	15	15	15	15
Capacity per.batch(kg)	1~2	6~10	8~15	15~20	20~25	18~35	25~50	35~50	50~60	165
Motor power(kw)	5.5	15	18.5	22	30	37	55	90	110	245
(mm)Overall dimension: Length*Width *Height	1380* 860 *1320	2800* 1200 *1120	3400* 1500 *1500	3450* 1500 *1550	3780*1850 *1750	4350*1850 *1785	5200*2380 *1840	5845*2284 *1978	5870* 2475 *2045	7465 *3662 *2080

---
