CNC Auto Metal Universal Horizontal and Vertical Turret Milling Machine

Product Description

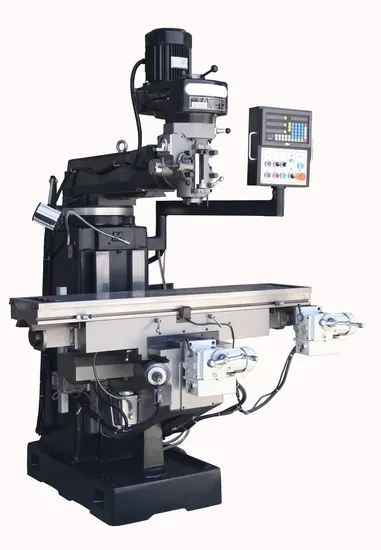

M Series Turret Milling Machine
Product Description
The milling machine mainly refers to the machine tool that uses the milling cutter to process various surfaces of the workpiece. Generally, the milling cutter is mainly moved by rotating motion, and the movement of the workpiece and the milling cutter is the feed motion. It can process planes, grooves, and can also process various surfaces, gears, etc.
A milling machine is a machine that uses a milling cutter to mill the workpiece. In addition to milling plane, groove, gear teeth, thread and spline shaft, milling machine can also process more complex profile, higher efficiency than planer, in the machinery manufacturing and repair department has been widely used.
Milling machine is a widely used machine tool, in the milling machine can be processed plane (horizontal plane, vertical plane), groove (keyway, T-groove, dovetail groove, etc.), split tooth parts (gear, spline shaft, sprocket), spiral surface (thread, spiral groove) and various surfaces. In addition, it can also be used for the surface of the rotary body, the inner hole processing and cutting work. When the milling machine is working, the workpiece is installed on the workbench or the indexing accessories, the milling cutter rotation is the main movement, supplemented by the feed movement of the workbench or the milling head, the workpiece can obtain the required machining surface. Because of the multi-edge intermittent cutting, the productivity of the milling machine is higher. Simply put, a milling machine is a machine that can mill, drill and boring the workpiece.

Model No.		M6323A	M6323B	M6323B	M6325B	M6325	M6325C
table size		9"×42"/9"×49"/ 10"×50"	9"×42"/9"×49"/10"×50"	10"×50"/	10"×50"/	10"×50"/	10"×50"/
				10"×54"	10"×54"	10"×54"	10"×54"
longitudinal travel		650	840	850	950	850	950
cross travel		305	305	400	400	420	420
T-slot No. and size		3×16	3×16	3×16	3×16	3×16	3×16
ram travel		312	312	470	470	470	470
distance from spindle nose		15~415	15~415	0~405	0~405	470	470
to table surface
spindle hole taper		standard:R8 optional:ISO30/ISO40					standard:R8
spindle travel		127	127	127	127	127	127
spindle speed		standard:shiftgrade 50Hz:65~4500 60Hz:80~5440
		optional variable speed:65~4500					optional variable speed:65~3750
auto quill feed		three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
spindle motor		2.25Kw/3HP					3.75Kw/5HP
head tilting		45°					fix
head swivel		90°
dimension of package	one set per case	1400*1476*2030		1516×1550×2080		1516×1550×2080
	two sets per case	1450×1570×2080		1650×1790×2170		1650×1790×2170
	three sets per case	1450×2180×2080		1650×2285×2235		1650×2285×2235
G.W/set		1100Kg	1160Kg	1380Kg	1420Kg	1550Kg	1590Kg

Model No.		MU6325	M6325D	M6330	M6330A	M6333	M6333A
table size		10"×50"/10"×54"	10"×50"/10"×54"	12"×54"/12"×60"	12"×54"/12"×60"	13"×54"/13"×60"	13"×54"/13"×60"
longitudinal travel		770	850 950	870	1000	840	1000
cross travel		420	420	380	380	368	368
vertical travel		400	420	430	430	450	450
T-slot No. and size		3×16	3×16	3×16	3×16	3×16	3×16
ram travel		470	470	500	500	500	500
distance from spindle nose to table surface		0~405	0~405	0~435	65-510	0~450	0~450
spindle hole taper		standard:R8 optional:ISO30/ISO40	standard:ISO40
spindle travel		127	127	127	127	127	127
spindle speed		standard:shiftgrade 50Hz:65~4500 60Hz:80~5440
		optional variable speed:65~4500	optional variable speed:65~3750
auto quill feed		three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
spindle motor		2.25Kw/3HP	3.75Kw/5HP
head tilting		45°	45°	45°	fix	45°	fix
head swivel		90°
dimension of package	one set per case	1516×1550×2080		1566×1650×2080		1800×2016×2180
	two sets per case	1650×1790×2170		1720×1800×2175		1800×2200×2180
	three sets per case	1650×2285×2235
G.W/set		1650Kg	1590Kg	1700Kg	1750Kg	2300Kg	2350Kg

---
