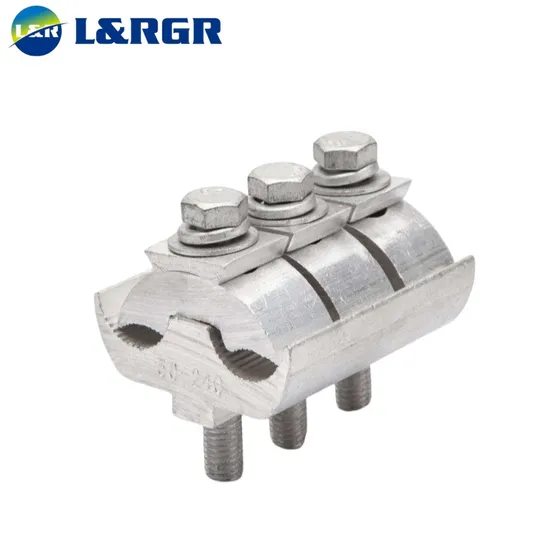

High Voltage Overhead Accessories APG-C3 Clamp/Pg Clamp/Three Bolts Aluminium Parallel Groove Cable Connector 25-240mm2

Product Description

Specifications Place of Origin:Zhejiang, China (Mainland)
Brand Name:L&R
Model Number:APG-C3 25-240mm2
Material:High tension aluminium alloy
Application:overhead cable clamp
Color:White
Packaging & Delivery Packaging Details:
Carton package, if you have any other packing instuction, please contact us and explain your wishes.
Delivery Detail:
5~15 days after order
Product Details
Parallel Groove Clamps are designed to connect two parallel conductors in order to do a derivation of a secondary conductor or to close a loop of one conductor to fit it on an insulator.
Product Introduction
These connectors are composed of two parts, an upper body and lower body. They have two parallel grooves to receive the conductors. In aluminium clamps, the two bodies are made out of high strength aluminium alloy. In bimetallic clamps, the two bodies are made out of high strength aluminium alloy, and to tight a copper conductor, one groove is made with laminated "Cupal" plate welded by hot forging which makes molecular link.
Product Details Show
APG PG Clamp

Cat.No.	Bolt		Applicable conductor diameter(mm²)
	Qty	Diameter
APG-A1	1	M8	16-70
APG-B1	2	M6	6-35
APG-B2	2	M8	16-70
APG-B3	2	M8	25-150
APG-C1	3	M8	16-70
APG-C2	3	M8	25-150
APG-C3	3	M10	25-240
APG-C4	3	M10	35-300

Aluminium PG Clamp

Cat.No.	L	W	H	M	No. of bolt
25-70mm²	75	40	20	10	2
70-150mm²	98	54	34	10	3
Up-to 300mm²	160	60	32	14	4

---
