Yuetong CNC Reaming and Slotting Machine, Barcode Scanning, Automatic Lubrication

Product Description

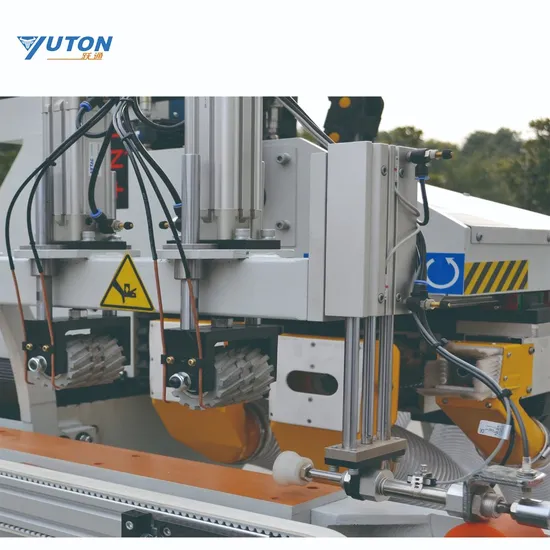

CNC lock hole and hinge slot machine MDK4120Q5
Function:
This machine works for all kinds of lock-holes, lock-slots, lock side-steps and hinge-slots on door leaf at one working cycle.

Feature:
1. Automatic tool setting, multi-point measure, guarantees machining preciseness.
2. Levo & dextro milling to ensure working quality.
3. Processing on double sides at the same time with high efficiency.
4. Follow-up clamping device, to shoot trouble of frequency adjust clamping device.
5. Bar code scanning auto lubrication.
6. Through-feed automatic feed-in & feed-out, feed-out direction could be forward or backward, to satisfy demand of single machine use and compose a line.

Automatic workpiece size measurement

Lock-hole & lock-slot processing

Hinge slot processing

Automatic feed in & feed out workpiece
Connect with manipulator for automatic loading and unloading
Customer workshop

Technical specification:

Workpiece length	1800-2400mm
Workpiece width	400-1100mm
Workpiece thickness	30-60mm
Levo and Dextro motor for the lock slot	1.5kw / 6.0kw
Corner square/screw-hole motor for the lock slot	0.4kw
Lock-hole motor	1.5kw+3.7kw
Levo and Dextro motor for the hinge slot	1.5kw / 3.7kw
Corner square/screw-hole motor for the hinge slot	0.4kw
Max moving speed of tool	60m/min
Overall size	5000*3300*2350mm
(One 20GP container can load one set of MDK4120Q5)
Weight	4000kg
Voltage	380V, 50HZ, 3phase.

CNC lock hole and hinge slot machine MDK4120D
Function:
This machine works for all kinds of lock-holes, lock-slots, lock side-steps and hinge-slots on door leaf at one working cycle.
Lock-hole & lock-slot processing
Hinge slot processing
Optional device:
1. Hinge motor tilting device (for drilling anuba hinge hole)
2. Hinge corner square and screw hole drilling motor assembly
3. Hinge interpolation for concealed hinge
4. Door frame clamp device (to process lock & hinge shape on door frame)
5. Extra hinge motor assembly (to make more than three hinges)
6. Worktable width automatic adjustment
7. Max working length 3m
Technical specification:

Working length	1800-2400mm
Working width	600-1100mm
Working thickness	30-80mm (only can do "down open" hinge for 60-80mm thick workpiece)
Hinge motor power	3x0.4Kw
Lock-slot motor power	3.7Kw
Lock sidestep motor power	0.4Kw
Lock-hole motor power	2*1.5Kw
Max moving speed of tool	8m/min
Overall size	2740*2270*1620mm
Wooden case size	2800*2290*2060mm
(One 20GP container can load two sets of MDK4120D)
Weight	1800kg
Voltage	380V, 50HZ, 3phase.

Tool specification:

Name	Size of tool blade	Size of tool shank	Qty
lock-slot tool (Overall solid carbide)	Ø18*110	Ø16*50	1
lock-hole tool (blade insert carbide and steel body)	Ø10*80	Ø12.7*30	1
lock-hole tool (blade insert carbide and steel body)	Ø22*80	Ø12.7*30	1
lock-sidestep tool & hinge screw hole tool (blade insert carbide and steel body)	Ø3*15	Ø12.7*30	1
hinge tool (blade insert carbide and steel body)	Ø12.7*Ø12.7		3

Main difference between MDK4120D and MDK4120Q5:

Item	MDK4120D	MDK4120Q5
Efficiency	2.5 mins per door	70 seconds per door
Process step	Lock side firstly, then hinge side	Both sides simultaneously
Connected in automatic line	Unavailable	Available
Optional with barcode scan function	Unavailable	Available
Optional to process lock slot and hinge slot on door frame	Available	Unavailable

CE Certificate

---
