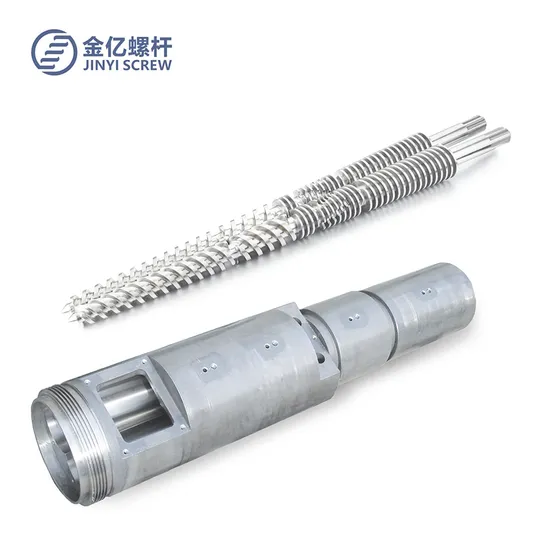

Twin Conical Screw and Barrel for Extrusion Machine for Blow Film Granulator

Product Description

Product Features
Brand	JINYI
Product Name	Twin Screw Barrel
Base Material	38CrMoAlA High-quality Alloy Structural Steel
Suitable Machine	Nitrided, Bimetallic,Chromed,Through Hardened,Coating
Bimetallic Material	JYS01(Ni,Cr,Si), JYS02(Ni,Cr,W), JYS03(Co,Cr,W)
Quenching and Tempering Hardness	HB260-280
Nitriding Hardness	HV950±50
Nitride Layer Depth & Hardness	0.4-0.6mm , 56-60HRC
Brittleness	≤2
Surface Finish	Ra0.04
Scope of Application	Suitable Recycling & Engineering Plastics & < 20% reinfored additives & corrosive plastic

Conical Twin Screw Barrel
Technical Parameters
Product Name: Conical Twin Screw Barre
Base Material: JYN1
Available Size: Φ35 - 188mm, L < 2,500mm
Process Method: Nitrided or bimetallic
Advantage
1. Unique technical design with larger output
2. Advanced equipment with finest machining
3. Perfect match of tolerance
Applications
Suitable for PVC pipes, profiles, sheets and extrusion foaming products.
Suitable for PE, PP corrugated pipe extrusion.

Size and capacity

Here is list of our general design data, which may be updated in some different circumstance.

Specification (d / D)	Working Length (mm)	Rotate Speed (rpm)	Capacity (kg/h)
Φ35/75	810	5-50	40-70
Φ45/90	990	5-45	50-80
Φ45/100	990	5-45	60-90
Φ48/112	1104	4-45	70-100
Φ50/105	1045	4-45	100-150
Φ51/105	1220	4-45	100-150
Φ55/110	1220	4-40	120-180
Φ55/120	1230	4-40	130-180
Φ58/126	1320	4-40	140-200
Φ60/125	1320	4-40	150-200
Φ65/120	1440	4-40	200-250
Φ65/132	1440	4-40	200-250
Φ68/146	1550	4-40	220-300
Φ80/143	1800	4-35	300-360
Φ80/156	1800	4-35	300-360
Φ92/188	2000	3-35	400-500

FAQ:
Q1. What's your MOQ?
1PC or SET

Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.
Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.
Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory as below address.

---
