Automatic Qingdao Hf Machinery Concrete Block Making Machine Cement Brick Making Machine

Product Description

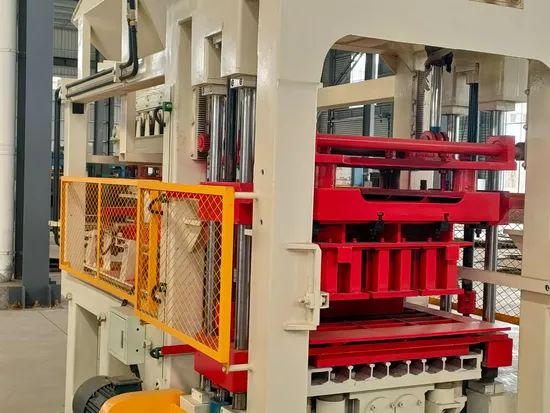

QT6-15 block making machine is a middle production machine, and face to ordinary block factory, it is a multi-purpose machine. This automatic hydraulic block-making machine can manufacture wall bricks, heat-insulating bricks, grass pavers, square pavers, slop protection pavers, road shoulder pavers, curbs, etc by simply changing the mould.
1. QT6-15 block making machine adopts hydraulic drive to products of high strength.
2. A short molding cycle automatic hydraulic block-making machine
3. PLC intelligence control realizes dialogues between human and machine. The production line, an advanced line, integrates mechanism, electricity and liquid.
4. By replacing molds, can produce different sizes of concrete bricks. .
Parameters of QT6-15 concrete block making machine:

yield	1900 pieces/h(390 × 190 × 190mm)
	9600 pieces/h(240 × 115 × 53mm)
size of pallet	850 × 680 × 17mm(PVC pallet)
exciting force	70KN
vibration frequency	60HZ
forming way	table vibration and box vibration
control method	PLC
molding cycle	15S
power	36kW
weight	10T

QT6-15 block making machine flow chart

Block samples
Our advantages Our block making machine , with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.

Buying details
We have two kinds of brick machine, one produce clay brick making machine, another produce concrete block making machine, when you want to buy, you please tell me
1. You need clay brick making machine or concrete block making machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
Anticipating for your inquiry, and we warmly welcome the new and old customers to visit our company.

---
