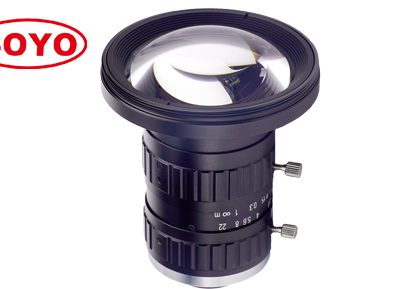

Hot Sales 1.1" 25MPixel 8mm FA machine vision Megapixel lenses Low Distortion Camera Optics Positioning Measurement C Mount Manual iris

Product Details

Product Description

Product Description
Download:
/products_detail.asp?id=1615&cataid=131&Cataupper=119&list=22
Download： S11MV0828-25M
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: <3.2% low distortion use machine vision ITS
Magnification: 0.0016x ~ 0.0696x
Application : Automation, machine vision, medical, life science, Positioning

Model		S11MV0828-25M
Resolution		25 Megapixel
Format		1.1"
Focal Length		8mm
Aperture (Close)		F2.8 Manual iris
Angle of View (°)	1.1" (14.13*10.35mm)	94.4*82.8*65.8
	1" (11.26*11.26mm)	89.6*70.4*70.4
	2/3" (8.4*7.1mm)	69.1*55.2*47.5
M.O.D		0.1m
Distortion		<3.2%
B.F.L		13.29mm
Size		Φ60.8*70.97mm
Filter Size		/
Mount		C
Weight		-

---
