Crusher for Waste Plastic/Wasted Drum/PVC Pipe/Pet Bottle/LDPE Film/HDPE

Product Description

Crusher for Waste Plastic/Wasted Drum/PVC Pipe/Pet Bottle/LDPE Film/HDPE
Overview
Biaxial shredding machine, also known as shear crusher, through cut, tear, and squeezing the material size is reduced. The shredding machine is widely used in tires, waste plastics, waste rubber, waste wood, crop straw and other large volume.

All equipment produced by our company can customize according to customer's requirements.

Features

· This series of biaxial shredding machine with double motors, double speed reducer design, ensure that the two main shaft of the machine cavity get equilibrium torque drivers.

· Adopts hardfaced cylindrical gear reducer drive, power strong.

· Blade using special special alloy tool steel forging and heat treatment several times, have very strong abrasion resistance and high strength, and have ability to repair use many times.

· This series shredding machine have torn, extrusion, occlusion, and other functions.

· Set to start, stop, reverse and overload automatic inversion of control function, effective protection and the main part of the machine tool.

· With a low speed, high torque and low noise characteristics.

Important note
1. The thickness of the shredding machine knife is divided into 15 mm, 20 mm, 40 mm, 50 mm and 75 mm, 100 mm, can choose according to object particle size after being broken blade.
2. The shredding machine knives for single claw blade, if you need more than double claw blade and claw blade users can contact the sales department.
3. The multifunctional shredding machine for grinding chunks of material, basket, tubes, plates, wood, tires, scrap metal barrel, big roll of film can be broken;Thick plate precision machining of composite frame structure, large Angle of six strong axis of rotation Angle, large diameter solid into the hopper, so you can rest assured put into large raw material.
The main technical parameters

Model	Knife thickness(mm)	Cutter diameter(mm)	Knife dish number	Capacity (t/h)	Power (kw)	Rotor Speed (r/min)
ZT-2S600	40	300	15	1-2	18.5X2	30-40
ZT-2S1000	40	350	25	3-6	30X2	25-35
ZT-2S1200	40	400	30	5-8	37X2	20-30
ZT-2S1500	50	500	30	8-10	55X2	20-30
ZT-2S1900	50	550	38	10-15	75X2	20-30

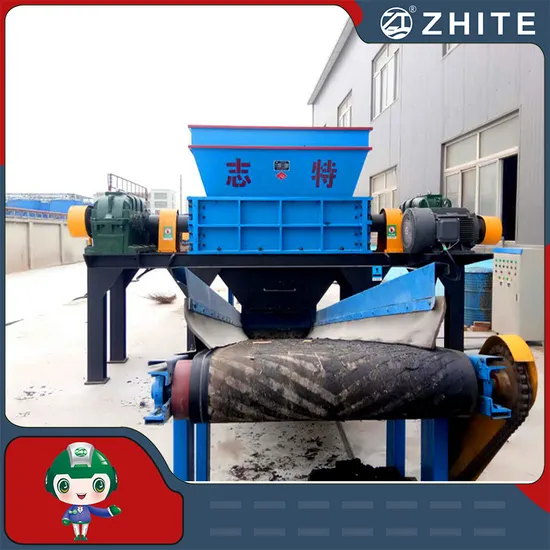

Product pictures

This machine is suitable for crushing materials as follows

1. All kinds of hollow container: plastic cans, plastic buckets, iron drum, packing boxes, packaging barrels.

2. The waste electrical appliances: TV set, washing machine, refrigerator shell.

3. The pipe: large pipes, pipe fittings, PE pipes.

4. The old template: wooden pallets, plastic pallet, forklift plate.

5. Old tires, car tires, truck tires.

6. Scrap metal: car shell, aluminum alloy, scrap aluminum parts, motor shell, lead, and the steel plate thickness under 5 mm.

7. Eat hutch waste, living garbage, dead animals, RDF derivatives, medical waste, straw, garden rubbish.

8. Glue head, mill twisted rope.

Other Product
What We Have
1> China Leading Producing Technology.
2> Super High Quality.
3> Competitive Price.
4> Big Production Ability.
5> Fast Delivery.
6> Excellent Sale and After-sale Service.
Customer Visit
Why choose us:
1> strong R&D department.
2> Exported to more than 1000 customers from more than 50 countries.
3> We promiss machine keep working over 10 years in good working condition.Fewer easy broken parts,easy to change.
4> Intelligent PLC control system,easy operate,more hommization.
5> One year guarantee time,24 hours online service.
6> OEM,ODM and customized service.
7> SGS ISO certificates.
8> We pay attention to the service customer quality,not customers quantity.
FAQ
1.Are you a factory or trading company?
We are a company specializing in the production of various kinds of shredding machine, crusher, excrement and urine processor for the equipment manufacturers.
2. service network
The service network is Distributed in national regions and form a complete set of supporting offices, formed a sound service network, the user services will be in place in 48 hours, convenient and efficient.
3.pre-sale service
According to user requirements, we will offer a variety of designs; help the user to select the most appropriate equipment; More for the sake of users, to design a floor plan for the users, and also a reasonable configuration.
4. installation and debugging
Company has experienced professional technicians and senior workshop technicians for free on-site training of buyer's operators and responsible for the guidance of equipment installation, guarantee the operation of the equipment, and to achieve the desired effect.
5.On-site service
Since the date of installation, the company will send an engineer for on-site guidance, to supply a timely solution of equipment normal state can not run, which due to the unskillful operators who are not familiar with our machine, and guide the users to grasp the solution of the problems during using the equipment.
6.after-sales maintenance
Since the date of Qualification adjustment, one year warranty, guarantee the quality of the product if non-users artificially, my company free repair. Since the end of the product warranty period, the supplier provide maintenance service for life, and should be paid to provide accessories, appropriate preferential charge for repairs. The supplier upon receipt of buyer's notification of the equipment failure, maintenance personnel can be arrived at the scene within 48 hours.
7.operation training
Detailed work instructions, professional and technical personnel on-site guidance operation; Regular training for each operator, to make them truly knowledgeable, systematic and professional.
8.Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Weifang, China. Welcome to our factory.
Customers to buy our company products are sold, is only the beginning of the relationship with our company, is the beginning of the after-sales service work, in the whole stage of customers to use the machine, we all after-sales service staff with thoughtful, meticulous, enthusiastic, timely service, let customers at ease, worry-free use of equipment, can really experience the our products bring convenience and create value for customers.
All equipment produced by our company can customize according to customer's requirements.
Thank you for your attention to our products, if you want to know more information, please feel free to contact us, we sincerely provide you with the most satisfactory service!
Factory pictures
Main products

1. plastic shredder	2. wood shredder	3. tire shredder
4. dead animal shredder	5. household refuse shredder	6. kitchen garbage shredder
7. tyre shredder	8. crusher shredder	9. scrap shredder
10. Auto Tire Shredder	11. cold dead cow shredder	12. medical waste shredder

---
