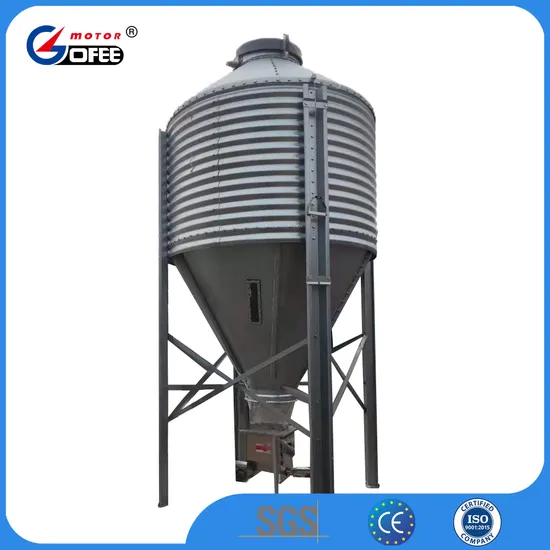

Dry Feed Storage Silo Large Capacity Steel Plate Chicken Feed Bin

Product Description

Dry Feed Storage Silo Large Capacity Steel Plate Chicken Feed Bin
Using European standard design, the galvanized sheet is 1.2 mm thick and 1 mm above the vertebral body, The material is galvanized with 275g of galvanized sheet and the angle of the vertebral body is 67 degrees.
Basics Using European standard design, the galvanized sheet is 1.2 mm thick and 1 mm above the vertebral body; The material is galvanized with 275g of galvanized sheet and the angle of the vertebral body is 67 degrees; The gap error of the tower is less than 2 mm, and the ladder, tower under the clamshell device, etc.; The top is covered with a flip cover for easy switching; With a transparent observation port, it is convenient to observe the inside of the tower; The ladder has its own protective structure for convenient and safe;

Tonnage (T)	Diameter (mm)	Height(mm)	Layers	Volumem³	Material	Number of legs
1.7T	φ1530	3410	1	2.5	galvanized sheet	4
2.7T	φ1530	4230	2	4	galvanized sheet	4
3.6T	φ2140	4300	1	5.15	galvanized sheet	4
5.4T	φ2140	5140	2	8.1	galvanized sheet	4
7.3T	φ2140	5950	3	11.03	galvanized sheet	4
10.5T	φ2750	5820	2	15.5	galvanized sheet	6
13.8T	φ2750	6630	3	20.3	galvanized sheet	6
17.1T	φ2750	7450	4	25.2	galvanized sheet	6
