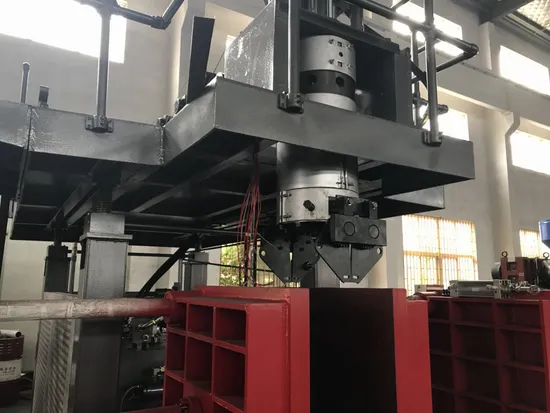

Bottle, Jar, Container, Blow Molding Machine (PXB100dB)

Product Description

PXB100DB
20L-30L Double Station Blow Molding Machine
- Fixed Opening-Closing Clamping with 5L Accumulator Head Capacity
- Perfect Usage for production of Big toys, auto parts, Jerry Can, sprayer and so on.
- Hydraulic Servo System control with quick action speed.
- High capacity amount with energy saving.
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters:

Material		PE,PP,ABS...
Max container capacity	L	30
Output(dry cycle)	pc/hr	650×2
Machine dimension(L×W×H)	M	6.4×6.2×4
Machine weight	T	23
Clamping Unit
Clamping force	kn	200
Mold platen size(W×H)	mm	830×800
Platen opening stroke	mm	350-850
Platen moving stroke	mm	500
Max mold size(W×H)	mm	590×700
Mold thickness	mm	360-420
Power
Servo oil pump motor power	KW	13
Servo pump displacement	L/MIN	80
Blow pressure	MPA	0.8
Air consumption	M3/MIN	0.7
Cooling water pressure	mpa	0.3
Water consumption	L/min	70
Average energy consumption	KW	52-60
Extruder unit
Screw diameter	mm	100
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	160
Number of heating zone	zone	5
Screw heating power	kw	28
Screw fan power	KW	0.5
Extruder motor power	kw	55
Die head
Number of heating zone for single die head	zone	4
Heating power for single die head	kw	19
Max die-pin diameter	mm	250
Accumulator capacity	L	5
(HDPE) Accumulator weight(HDPE)	KG	3.75

Delivery Time:
- No later than 60 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments and moulds for production line are available and optional, please kindly ask for quotation.

---
