Qh Pack Best Quality Corrugated Carton Box Slitter Scorer Machinery for Corrugated Production Line

Product Description

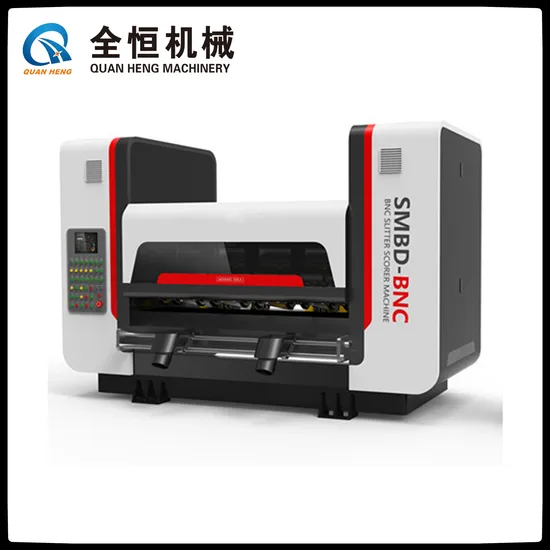

Product Description QH PACK Slitter Scorer Machine for Corrugated Board Line
1.High quality touch screen and PLC equipped composing the CNC system,connect to the production line.
2.High quality beeline rail and high-precision screw conveying guarantees the precision.
3. A memory of orders,realize non-stop automatic or manual change.
4.Speed synchronizes with board speed.Standard communication interface,easy to link with management system.
5.Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening
6.The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.
7.Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.
8.Two rows of scorers,realizes minimum scorer spacing is 0mm.
9.Computer control score-depth,high quality scorer,more steady .
10.Using the synchronous belt transmission ,low noise,prolong using time.
11.Standard motorized body left-right rectification system 200mm

width	1800mm	2200mm	2500mm
speed	150,200,250m/min
Blade&scorer	5&8,6&10,7&12
Order change	1-3s(servo type)
precision	±0.5mm
Min.slitting	135mm
Min.scorer	0mm
Correction range	200mm
power	25kw	30kw	35kw
machine size	3900*1800*2450 (mm)	4300*1800*2450(mm)	4500*1800*2450(mm)

Detailed Photos
Company Profile
Certifications
Packaging & Shipping

---
