Model:SL07
|
LCD panel
|
Panel size
| 7"
|
Resolution
| 1024*600
|
Aspect ratio
| 16:9
|
Support Color
| 16.7M colors
|
Brightness (cd/m²)

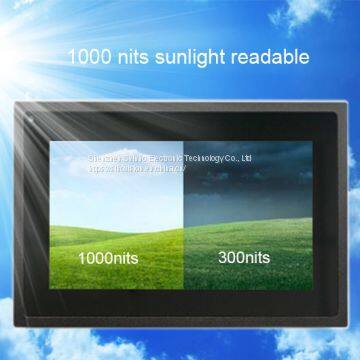

| 1000 nits, sunlight readable
|
Dimming
| light sensor, auto dimming
|
Contrast ratio
| 800:1
|
View angle
| 75°/75°/70°/75° (R/L/U/D)
|
Touch panel
|
Touchscreen Type
| Project Capacitive Touch (10 points )
|
Surface Hardness
| 7H
|
Luminousness
| 90%
|
Touch Interface
| USB
|
Touch response time
| 2ms
|
Working Life
| >50 million times
|
Surface Treatment
| Anti-glare
|
Touch options
| (4 wires resistive touch, IR touch optional)
|
Singal Ports
|
VGA
| 1×VGA
|
HDMI
| 1×HDMI
|
DVI
| optional
|
AV
| optional
|
Audio in/out
| optional
|
OSD
|
OSD control
| Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
|
Support languages
| English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
|
Support OS
| Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
|
Power Supply
|
External Power Supply
| AC 100 - 240V
|
Working voltage
| DC 12V
|
Power consumption
| ≤10W
|
Enclosure
|
Appearance
| Flat panel
|
Material
| aluminium alloy bezel+High strength cold rolled steel back case
|
Color
| Black, white, Silver , color can be customized
|
VESA mounting
| 75×75mm
|
IP Grade
| front panel IP65 waterproof
|
Operating Environment
|
Temperature Range
| operating: -20 to 70°C, storage :-30 to 80°C
|
Relative humidity
| operating: 10% to 90% , storage :5% to 90%
|
Packing Details
|
Net weight
| 1.85kg
|
Gross weight
| 2.5kg
|
Product Dimension
| 19.1×12.8×3.4 cm
|
Packing size
| 37×28×10 cm
|
Accessories
| Power adapter, HDMI /VGAcable, USB touch cable
|
Other
|
Mounting
| Embedded screws
|
wall mounting brackets (optional)
|
desk stand holder (optional)
|
Warranty
| 1 year warranty
|
Certificates
| CE, FCC, RoHS
|
Shenzhen Shinho Electronic Technology Co., Ltd.Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.
