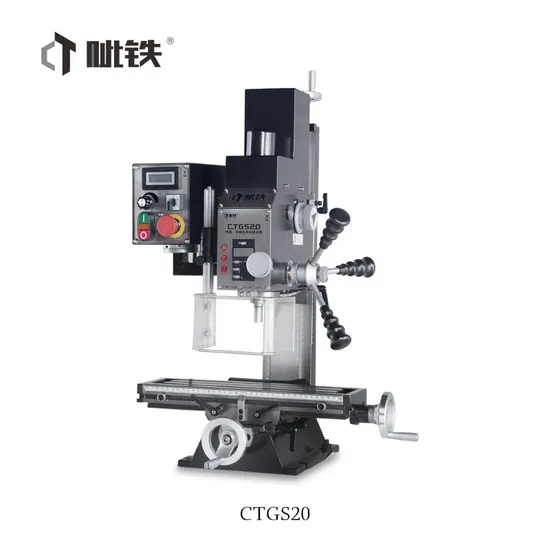

China Conventional Milling Machine Ctgs20 Drilling and Milling Machine Price

US$875.00
1-4 Pieces
US$840.00
5-9 Pieces
US$805.00
10+ Pieces

Basic Info.

Model NO.
Ctgs20
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
480*440*840mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 20mm
Max.milling capacity 52mm
Max.vertical milling capacity 16mm
Table size 400*120mm
T-slots size 10mm
X spindle travel 230mm
Y spindle travel 145mm
Z spindle travel 200mm
Spindle taper MT2/M10
Spindle travel 50mm
Spindle box left&right rotation angle ±90°
Spindle speeds 100~3000 rpm
Motor Power 600W
Net weight/gross weight 60/80kg
Overall dimensions 480x440x840mm
Package Size 520*520*840mm
