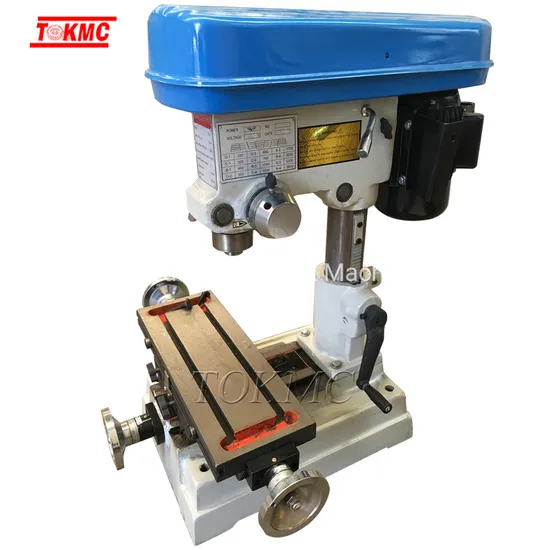

Spindle Head Belt Driven Manual Small Milling Machine

US$300.00-700.00 1 Piece (MOQ)

Basic Info.

Model NO.
zx16
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Machine
Milling Machine
Drilling Capacity
16mm
Vertical Milling Dia
10mm
End Milling Widthh
40mm
Spindle Hole
Mt2
Motor
370W
Table Size
230X150mm
Spindle Box Travel
200mm
Voltage
Single Phase or Three Phase
Column Size
72mm
Spindle Speed
250-3200 mm
Transport Package
550X430X420mm
Specification
120kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/ Years

Product Description

small bench milling drilling machine
Specification Zx16 Zx20
Max. Drilling dia mm 16 20
Max.vertical milling dia mm 10 12
Max.end milling dia. mm 40 50
Spindle hole taper MT2 MT2
Spindle travel 85 100
Distance spindle axis to column 182 200
Column size 72mm 78mm
Distance spindle nose to table surface 60-400 70-410
Table size 230x150 500x200
Table travel longitudinal and transwerse 230x150 300x150
Body travel 200 250
Spindle speeds series 12 12
Spindle speed ranges 50hz r.p.m 250-3200 250-3200
Motor watt 370 550
Net weight/Gross weight kgs 105/120 160/184
Package size mm 550x580x610
550x430x420		 710x680x620
640x490x430

Milling drilling machine vice
