Ast Srx-Mtl-2c Ppm O2 Sensor Replaces Teledyne L-2c C06689 Larger Electrolyte Longer Sensor Life O2 Gas Sensor Measure Oxygen

Product Description

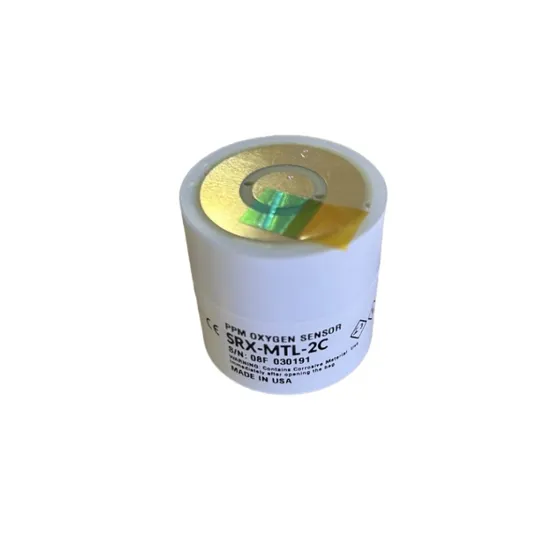

Product Description AST SRX-MTL-2C PPM O2 Sensor - Replaces Teledyne L-2C Product Overview:
The AST SRX-MTL-2C Trace PPM O2 sensor is a high-precision, long-life oxygen sensor designed for measuring low concentrations of oxygen (0-10 PPM). It is widely used in industrial and laboratory environments that require precise oxygen monitoring. The sensor employs micro fuel cell (Galvanic Type Micro Fuel Cell) technology with a larger electrolyte reservoir, providing a significantly longer lifespan compared to standard PPM O2 sensors. The SRX-MTL-2C is especially ideal for very dry gas streams and gas environments with temperatures above 30°C.
Key Features:
High Precision and Reliability:
The SRX-MTL-2C sensor has a signal accuracy of ±1%, with linearity and repeatability of ±1% and ±0.5%, respectively. Its response time is very fast, with a T90 response time of 7 seconds, ensuring quick and accurate detection of oxygen concentration changes.
Exceptional Long-Term Stability:
Using advanced micro fuel cell technology, the SRX-MTL-2C offers low drift (<2%) and maintains high-precision measurement even after prolonged use. This makes it an ideal choice for applications requiring long-term stable performance.
Wide Operating Temperature Range:
The sensor operates stably within a temperature range of 5°C to 45°C and has high humidity tolerance (non-condensing, 0-99% RH). This allows it to maintain stable performance in dynamic working environments and adapt to various gas conditions.
Long Lifespan and Cost-Effectiveness:
The SRX-MTL-2C sensor has an expected lifespan of 24 months, significantly reducing replacement frequency and maintenance costs. Its larger electrolyte reservoir extends

Parameter	Description
Model	SRX-MTL-2C
Sensor Technology	Galvanic Type Micro Fuel Cell
Measuring Range	0 to 10 PPM
Signal Output	460 - 625 μA
Response Time (T90)	7 seconds
Accuracy	±1% of signal
Drift	< 2%
Linearity	±1%
Repeatability	±0.5%
Temperature Coefficient	-2.2% / °C
Operating Temperature	5°C to 45°C
Storage Temperature	0°C to 45°C
Recommended Flow Rate	0.5 - 5 SCFH
Humidity (Non-Condensing)	0 - 99% RH
Expected Life	24 months
Recommended Storage Time	6 months
Warranty	12 months
PCB Connections	Center Negative, Outer Positive
Size	1.25 x 1.25 inches
