High Quality Pet/Animal/Fish/Dog Feed Extruder Machine Production Line

Product Description

1. Introduction of production line

The fish food making machine and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc.
According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1.2-12 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fish food making machine also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
Process flow: mixing--extruding & puffing-Conveying --Drying--flavoring--Cooling(Packing)
TSE65 fish food production line( capacity 150kg/h) flow chart
mixer → screw conveyer → TSE65 twin-screw extruder → hoister(air conveyer) → 5-layer 5 meter drying oven → single drum flavoring line → cooling machine → packing machine(optional)
TSE70/85 fish food production line( capacity 250kg/h, 500kg/h) flow chart
mixer → screw conveyer → TSE70/85 twin-screw extruder → hoister(air conveyer) → 5-layer 8 meter drying oven(7-layer 8 meter drying oven) → double-drum flavoring line → cooling machine → packing machine(optional)
TSE90/95 fish food production line( capacity 800kg/h, 1200kg/h) flow chart
raw materials mixing system → screw conveyer(bucket elevator) → Storage hopper → steam pre-conditioner → TSE90/TSE95 twin-screw extruder → hoister(air conveyer) → 7-layer 11 meter drying oven (bigger ovens) → double-drum flavoring line → cooling machine → Storage bin → packing machine(optional) As above the picture show.
2. Features of fish food production line

A. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting.
B. Gearbox with automatic lubrication function, extending gear life.
C. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
D. Production line is full automatic, only need 1-2 persons to operate.
E. For the fish food capacity, we have small capacity and large capacity for your reference. You can choose the capacity according to your budget.
F. Customized voltage, we can produce the machines according to your country voltage, such as 220V, 415V, 400V etc.
3. Technical parameter

Model	TSE65	TSE70	TSE85	TSE90	TSE95	TSE120
Installed Power	74kw	105kw	110kw	132kw	165kw	280kw
Power Consumption	52kw	75kw	55kw	75kw	90kw	132kw
Production Capacity	100-150kg/h	200-250kg/h	300-500kg/h	500-800kg/h	800-1200kg/h	1800-2000kg/h
Dimension	17*1.3*2.2m	20*1.5*2.2m	32*2.0*3.5m	35*2.5*3.8m	40*3.5*4.5m	45*4.5*6.0m

4. Samples Show
The basic formula of sample
corn meal, wheat flour, wheat bran,rice flour, corn starch, de-oil soya flour, meat, bone, animal oil, vitamins, minerals, food color etc.
Humidity: the moisture is no more than 15%.
Sizes: (1) diameter: from 1.2mm-12mm. (2) length: user-defined.
5. Our machines details show

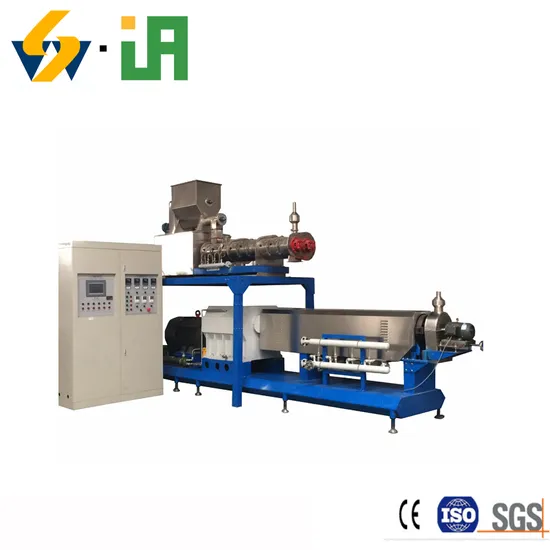

The detailed show of our extruder
The detailed show of our dryer
6. Company Information
Jinan Shengrun Machinery Co., Ltd. is a professional manufacturer of extrusion machinery.We boast strong design force, advanced production equipment and rich manufacturing experience. We have ISO9001:2008 and CE certificates, and pass SGS and TUV inspections.
We are committed to making efficient extrusion machinery, twin-screw extruders, single-screw extruders, breakfast cereal and instant food (corn flakes, nutritional powder) production lines, pet food and fish food production lines and so on. High efficiency, high quality and high performance constitute our core competitiveness.
Based on our powerful R&D ability, manufacturing skill and perfect service system, we have served the clients in 60 countries, and obtain their high praise.
7. Packing&Shipping
(1). Packing machines into wooden cases;
(2). Let trucks take containers to our factory for safely loading;
(3). Sending to port for boarding and transportation.
(4). We also can send machines by air and train.
8. Our service
(1) Free consultation service for all processes; (2) Free project planning and design services;
(3) Free debugging till every machine running well;
(4) Free delivery management for loading, shipment and transportation;
(5) Free workers training of equipment maintenance and operating;
(6) Free new production techniques and formulas after sales;
(7) 1 year complete warrantee and lifetime maintenance service and cost price spare parts.
Don't hesitate to contact us.
If you have any other question, please send me the inquiry as soon as possible, waiting for you my friend. Thanks

---
