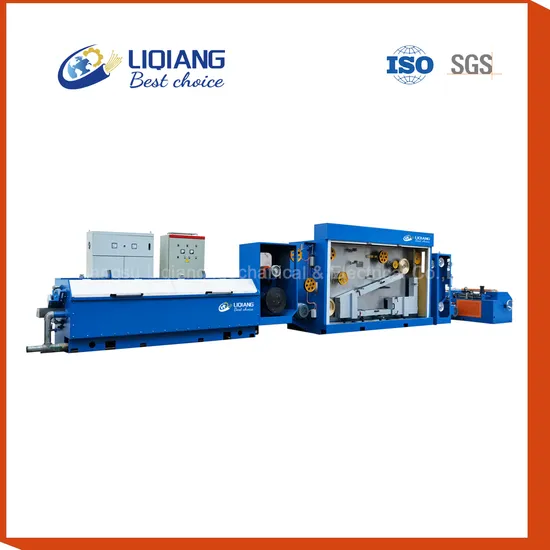

Liqiang 1.7-4.5mm Rod Breakdown Wire Drawing Machine with Annealer

Product Description

450-13DT 1.6-3.5mm Rod Breakdwom Machine with annealer for copper ( Capastan Type)

Model	450-13DT
Inlet diameter	Φ8.0mm
Outlet diameter	Ф1.6-3.5mm
Max. annealing speed	800m/min
Usage	bare copper wire drawing
Drawing pass	13
Diameter of drum	Φ450mm
Total noise	<80db

Main machine power	160KW
Annealing machine	11KW
Take-up machine	15KW
Power	380V 50HZ or others
Method of speed governing	Frequency converter control
Capacity of take-up	500KGS
Pay-off method	over-head type
Lubrication method	half-immersing + spray type

As we set final die's size through the PLC,the dies will be fully automatically showed on the monitor.
The driving motors of drawing and final capstan will synchronously controlled to gain 2% below drawing slip ratio.
The rapid dies change system does not need to change all the dies in working but te final one,which saves a lot of time.
Jiangsu Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company? A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime. Q:Where is your factory located? A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine? A: More than 20 years. We have our own technology develop department and testing department. Q: Can you send your engineer to my country for machine installation, worker training? A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced. Q: What's the guarantee time for your machines? A: 12 months since the date of dispatching from our factory. Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. We will arrange all the customs clearances in advance for you. If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price.

---
