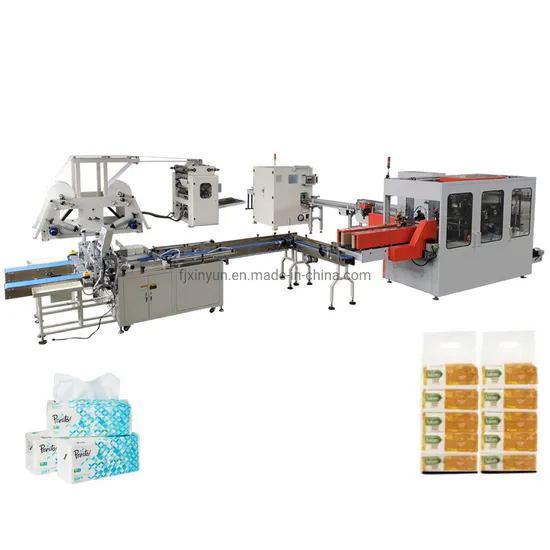

Automatic Soft Packing Facial Tissue Paper Making Machine Production Line

Product Description

XY-GU-A-B Automatic Soft Packing Facial
Tissue Paper Making Machine Production Line Product Description Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.
Video Link: https://youtu.be/dR4nualw6SM XY-GU-20A Automatic Facial Tissue Making Machine
XY-GU-20A Automatic facial tissue making machine working flow: The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive, and automatic paper tension control. It features of high speed ,nice folding and easy operation.
Function And Features 1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected) 2. Wallboard rack and fast machine running stability is excellent. 3. Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed ratio of adjustment, and
web tension control. 4. Equipped with roots type vacuum pump for stable running of the machine. 5. Make various products width as requirement. 6. Equipped with edge embossing unit to keep the two plies together. 7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken. 8. The web can be threaded on the machine by the two jog buttons, It's more safety and easier to thread the web. Product Parameters

Machine model	XY-GU-20A
Folded size of finished products	100*(120-210)±2mm
Unfold size of finished products	200*210±2mm
The width of jumbo roll paper	1400mm
Diameter of jumbo roll paper	1200mm
Diameter of jumbo roll paper inner core	76.2mm
Daily Output (8 hours)	2000-3000Kg
Embossing unit	Steel to steel full embossing, Steel to steel edge embossing, independent pneumatic regulation
Slitting unit	Pneumatic slitting
Power	5.5KW Main motor
	1.5KW(2 sets) Jumbo roll paper stand
Vacuum suction unit	18.5KW
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Overall dimension	7950*2500*1850mm
Weight	6.0T

XY-GU-281 Automatic Single Channel Paper Cutting MachineCyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.

Technical Parameters

Cutting Length	70~300mm
Left-over Length	20~65mm
Power	11KW
Power supply	380V 50Hz
Air pressure	0.5~0.8MPa
Machine Size	4600*1700*2500mm
Weight	2300~2600kg
Brake	Parameter setting (auto/manual)
Stepping sharpening knife	Parameter setting (auto)
Pneumatic sharpening knife	Parameter setting (auto/manual)
Blow air	without
The total pressure switch	Value (not)
Human-computer interface	DELTA (or selected by customer)
Frequency changer	DELTA
Servo Drive	DELTA

XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine XY-BT-298 is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.
Function and Features 1.Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2.Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3.Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4.Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5.High autoimmunization, high specialization, high efficiency and but less trouble.
6.Different sizes can be handled easily thanks to a fast and simple changeover facility. Technical Parameters

Technical Specifications	Description	Remark
Scope of application	Facial tissue, hand towel, napkin tissue
Equipment feeding mode	ASF Full automatic	Five sections of intelligent flexible feeding mode
Max. design mechanical speed	Max. 100 bags/min	Related to specification of packing
Max. stable operation speed	70 bags/min	Related to specification of packing
Tissue length range (finished product)	120 mm- 210 mm	Over this size can be customized
Tissue height range(finished product)	40 mm- 100 mm
Tissue width range(finished product)	90 mm- 105 mm
Spare parts for change size	3 sets	Standard configuration quantity, the accurate specifications drawn up by the user
Machine size(L*W*H)	4600*3620*1770mm	Standard size
Machine weight	About 3000KG
Packaging materials	CPP film
Film Thickness	0.04mm-0.055mm
Max film diameter	400 mm	Over this size can be customized
Diameter of film core	76mm	In accordance with international standards
Max film width	340mm	Over this size can be customized
Air compressor	Minimum air pressure 5MPA	Equipped by user
Power supply	380V/50HZ	Following China's electric power standard
Total drive power	4.8 KW	The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power	4.6 KW	Side seal, side sealing part of heating power combined
Voltage variation	+/-10%	In accordance with international standards
I/O Input/ I/O	24VDC	Electrical control system control circuit input
I/O Output/ I/O	24VDC	Electrical control system control circuit output
Equipment motion control mode	Three axle servo and axle location control	The electronic CAM motion curve
Equipment main transmission mode	20crmnti mechanical-cam+The electronic CAM drive
Machine standard colour	Gray, International color RAL 7032	The international color card color number RAL7032
Packaging style	Three-dimensional wrapping	vertical sealing first and then two side sealing

XY-GU-26B High Quality Multi Bags Tissue Paper middle packing machine This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyor belt. This machine assemble paper-feeding, bagging, sealing and cutting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature control accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.


Technical Parameters

Speed	10-15 bags/min
Packing dimension	135-190*90-100*60-80 mm( the width will be selected by customer)
Power	1.2 Kw 380V 50Hz
Air supply	0.6 Mpa (prepared by buyer)
Overall size	3900*1200*1500 mm
Weight of machine	600 Kg

Recommend Production Line
XY-GU-A-A Fully Automatic Facial Tissue Machine Production Line
Video Link: https://youtu.be/F-4BTa78Kfk
There are four machines in this production line.
1) XY-GU-20A Automatic 6 Lines Facial Tissue Paper Making Machine
Capacity: 5,400 sheets/line/min
2) XY-GU-281 Automatic Facial Tissue Paper Cutting Machine(single channel)
Capacity: 80-100cuts/min
3)XY-BT-298 Automatic Plastic Bags Packing Machine
Capacity:50-70 bags/min
4)XY-BT-299 Automatic Facial Tissue Bundle Packing Machine
Capacity:18 bundling bags/min
Packaging & Shipping
After Sales Service Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
Company Profile Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry,we will reply as soon as possible, thank you.

---
