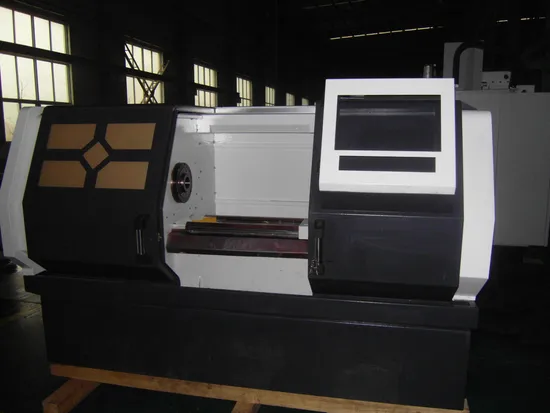

CNC Lathe Machine (LNC6132C)

Product Description

cnc lathe

The machine can be used in many industrial sectors, including instrument, light industry, electronics, aircraft industry......

LNC 6132& lnc 6132C CNC lathe are new products of our company, which are to be used in making various shafts, internal and external cylinders and all kinds of arced, curved, and conical surfaces. The main spindle is supported with high precision angular contact ball bearings, to ensure high turning accuracy. Spindle speed is controlled by frequency converter and infinitely variable. Ball-screw is supported with groups of angular contact ball bearings. A central lubricating system is equipped for both bedways and ball-screw.
It is a machine of multiple functions, with high reliability and high efficiency. Machine parts finished with this machine are in high interconsistency. It is easy to program and to operate, and capable of variable cutting process.

Date
cnc lathe

CAPACITIES	Max. swing over bed	mm	320
	Max. swing over carriage	mm	160
	Max. turning length	mm	400
SPINDLE	Spindle speed	mm	100-3000
	Spindle nose	rpm	C5
	Spindle taper		36
FEEDS	Rapid traverse of X axis	mm/min	3000
	Rapid traverse of Z axis	mm/min	3000
TAILSTOCK	Taper of tailstock sleeve		MT3
RECISION	Resolution	mm	0.001
	Repeatability	mm	X: 0.01 Z: 0.013
Overall Size		mm	1524 x 987 x 1182
Weight		kg	800
Type of CNC Controller			SIEMENS 802S/GSK928
Old model			CJK6132C
