High Capacity Pet Plastic Bottle Hot Washing Recycling Equipment with Crushing and Washing Wet Grinding Machine

Product Description

Product Description

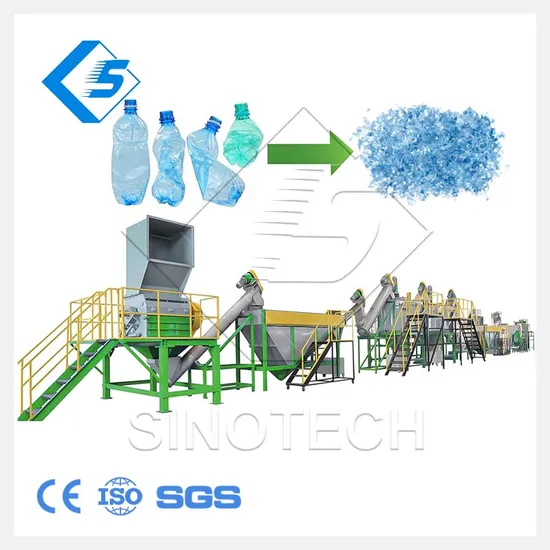

Plastic PET Bottle Recycling Washing Line
PET bottle washing recycling line is a full automatic crushing washing dewatering and drying production line, it is the ideal equipment to waste mineral water bottles, cola bottle, PET bottle sorting, label removing, crushing, washing, dewatering and drying machines.

Product Description:
1.This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H, 3000KG/H
Main Advantage:
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.
Features:
Capacity: 500-3000kg per hour
Moisture of PET Flakes: Less Than 2%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,
Application: PET Strap, PET Yarn Fiber, PET Sheet

Product Parameters

Model	PET-500	PET-1000	PET-1500	PET-2000	PET-3000
Capacity	500kg/h	1000kg/h	1500kg/h	2000kg/h	3000kg/h
Total power	180kw	240kw	350kw	440kw	653kw
Actual power	126kw	168kw	245kw	308kw	457kw
Workers	5-6persons	7-8persons	9-10persons	11-12persons	14-15persons
Water needed	3-5t/h	5-6t/h	6-8t/h	6-8t/h	7-10t/h
Final production	Water content: ≤1.5% Stacking density: 0.25-0.35 g/m³ Flakes size: 14mm (according to customer request) Fine granule: ≤ 3%; Powder: ≤ 5%

Detailed Photos
The production line includes: De-baler, belt conveyor, trommel, label remover, sorting table, crusher, floating washing tank, screw feeder, hot washer, high speed friction washing machine, centrifugal dewatering machine, dryer blower and label seperator, silo, electric cabinet etc.
01 Metal chain conveyor
Usage: Cut the bundled PET bottles of wire, through the chain conveyor to the unpacking machine unpacking
02 De-baler
Usage: Manully cut off the packaging steel line of the packaged bottles. then put them into the debaler. The packaged bottles will opened by the running screw blade and run ahead to exit.
03 Trommel
Usage: Separate different impurities such as sand, rocks ,metals, caps according to different size of the holes

04 Label-remover
Usage: for removing the labels by friction between screen and arms

05 Platform of choosing color bottles with metal detector
Usage: Manually separate any impurities that can be seen.

06 Wet crusher
Usage: to crush PET bottles into PET flakes.
07 Floating washing tank
Usage: to remove labels, caps chemicals dirties etc
08 Hot washer
Usage: for wash with hot water and detergent to get rid of oil, dirties and some labels

09 High speed friction washing machine
Usage: through the injection of high pressure water, the effective remova of chemicals and impurities

10 Centrifugal dewatering machine
Usage: to get rid of glue, dirties, oil. detergent and etc.

11 Zig-zag label blower
Usage: to separate labels and dust from the flakes.

productive process

Company Profile


Certifications

Packaging & Shipping

FAQ
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
Q: Do you provide any spare parts with machine?
A: Yes, we offer all necessary spare parts together with machine sending and 3 days spare parts delivery after machine sale.(contact us for packing list )
Q: How about your after-sale service?
A: We offer manual instruction and engineer training before loading, after shipment we provide 24 hours online support, video technical support or field installation assist.
Q: What is the lead time?
A: We have standard model machine in stock.It can be delivery within 1 week. If need to make mould, the delivery time need half month after drawing confirmed.
Q: What is the warranty period for your machine?
A: 12 months warranty for components and technical support.
Q: Do you provide custom machines?
A: Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: What's the advantage of SINO-TECH?
A: We provide customers with turnkey projects. Including plant design, blow molding machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time for customer.
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.

---
