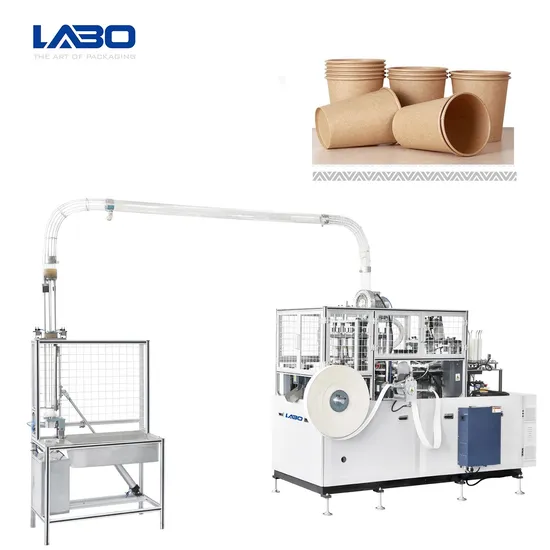

High Speed Vertical Double PE, Single PE, Laminated Paper Cup Forming Making Machine

Product Description

Introduction:
High Speed Vertical Double PE,Single PE,Laminated Paper Cup Forming Making Machine has advantage of high performance high efficiency and high-quality; The overall steel plate body and the oil-spaying lubrication system ensure the long-term normal and stable operation of the equipment.
Energy efficient:
The advanced high-precision cam drive and gear drive make the forming of each station accurate; the servo tracking bottom feeding paper locks the size of the cup bottom paper, effectively saving raw materials;
Humanize:
The human-machine interface PLC system controls the stable operation of the whole machine for a long time; the automatic counting and reasonable setting of the cup collection table can replace the busy work of manual work;
Product Made from Machine:
Main Technical Parameters:

Model	LB-C
Paper Cup Specifications	40ml-16Ounce (according to cup size change the mould)
Paper Cup Material	150-350g/m2
Production Speed	65-85pcs/min
Power Supply	220V/380V 50Hz
Total Power	4KW
Gas Source	0.4-0.5m3/min
Machine Weight	1700KGS
Overall Dimension ((L*W*H))	2000X1230X1700mm

Machine Detailed Pic for Reference:
Packing and Loading of Container:

---
