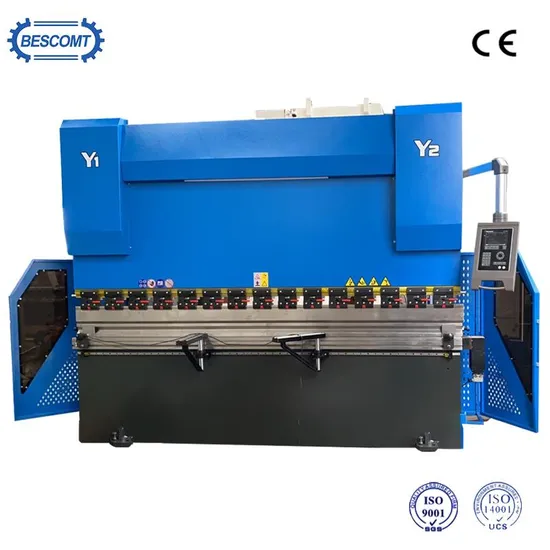

60t CNC Sheet Metal Press Brake/CNC Hydraulic Press Brake

Product Description

Product Description
60t CNC Sheet Metal Press Brake/CNC Hydraulic Press Brake
Press brake can be divided into manual press brake, hydraulic press brake.

Type	Nominal Pressure (KN)	Length of Table (mm)	Distance between Housings (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor(KW)
WC67Y-63/2500	630	2500	2050	250	100	335	5.5
WC67Y-63/3200	630	3200	2670	250	100	335	5.5
WC67Y-63/4000	630	4000	3300	250	100	350	5.5
WC67Y-80/2500	800	2500	2050	250	100	335	7.5
WC67Y-80/3200	800	3200	2660	250	100	335	7.5
WC67Y-100/2500	1000	2500	1950	320	140	385	7.5
WC67Y-100/3200	1000	3200	2650	320	140	385	7.5
WC67Y-100/3600	1000	3600	3000	320	140	385	7.5
WC67Y-100/4000	1000	4000	3200	320	140	385	7.5
WC67Y-100/5000	1000	5000	4200	320	150	420	7.5
WC67Y-125/3200	1250	3200	2680	320	150	370	7.5
WC67Y-125/3600	1250	3600	3000	320	150	370	7.5
WC67Y-125/4000	1250	4000	3280	320	150	370	7.5

Main Features
1) The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology,high strength and good rigidity og machine.
2) Double hydraulic oil cylinder is applied for upper transmission, prouded with, mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation, as well as high precision.
3) Electrical cintrol and manual fine-tuning, mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital diaplay device,easy and quick in use.
4) Upper dies is fitted with deflection compensation device.
Product Application
Manual press brake is divided into mechanical manual press brake and electric manual press brake, hydraulic press brake by synchronously and can be divided into: torsion axis press brake, electric-hydraulicpress brake.Hydraulic press brake according to the movement mode and can be divided into: down moving and up moving type
Detailed Photos
Machine Body
The machine body is in an overall processed structure and ANSYS finlte element analysis to main parts of the
machine body for analysis,which has ensure the reliability of machine tool and the precision of the entire
machine.Control Panel Mechanical Clamps
Upper die is a kind of machanical hook-type clampings, higher safety when exchanging dies.
Hydraulic control system
Hydraulic control system import from germany is adopted for the whole hydraulic system,simplify the installation
of pipelines to ensure stable operation as well as simple and nice appearance of the machine tool.Grating Ruler
C-shaped plates are fitted on both sides of the machine body,the high precision grating rule is mounted on the
C-shape plates,thus to avoid the infuence over pending precision arising from distortion of machine body during
bending processSiemens motor
Servo motor can make the control speed, position accuracy is very accurate, the voltage signal can be converted into torque and speed to drive the control object.Siemens servo system can achieve excellent dynamic positioning and accurate motion control sequence, and rich Siemens servo motor products compact structure, can achieve excellent dynamic characteristics and operational efficiency
We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.3.The outmost is wooden case with fixed formwork.4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.After Sales Service
1.We provide 24 hours on-line service Can contact us by MSN, Skype, Email and Telephone at any timeOur factory also will make DVD to show the operation steps for the
customer.2.We can send the component by DHL, TNT freelyOur guarantee time is two years, if any component is damaged during guarantee time
3.Our factory can send our engineer to the customer's factory install, commission and training freelyThe customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to
our factory to learn the operation and maintains freely.FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required. 2.What kinds of payment methods do you accept? You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance before delivery
3.Guaranty covers? Main parts of the machine , wearing parts not included .PARTS DELIVERY. Within 5 days by DHL / Fexed .
4.About our after-sale service:Customer service 24 hours online, you can send technicians to your country to repair the machine. Buyer shall bear all costs including visa, round trip airfare and suitable accommodation and buyer shall pay usd 100 / day salary. 5.How to replace machine parts?Parts adopt international brands, good quality, no need to replace within 3-5 years, convenient to buy suitable parts locally.6.Installation&Commissioning:Usually solved by video conference, if necessary, can be dispatched to the door installation debugging and maintenance of technical personnel.

---
