Product Details
Product Description
Product Description
Features:

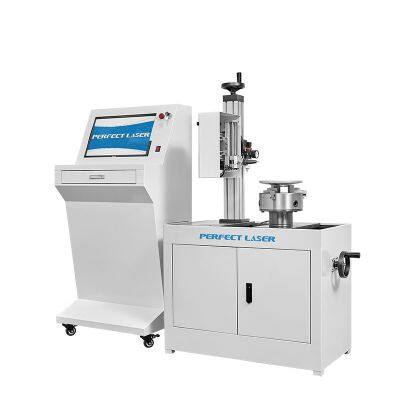

1. This dot peen marking machine is mainly marking for arc surface marking, such as: brake discs, flanges and many metal parts. It can also mark on variety of metallic or non-metallic cylindrical, conical, spherical shaped work pieces.
2. It uses lifting structure and angle-adjustable marking head to achieve the multifunctional marking.
3. Equipped with industrial computer, it has powerful marking software. It has more than one hundred fonts and various special symbols.
4. It not only can automatically mark logos, characters, letters, numbers, but also can mark VIN codes, graphics and engine numbers. It supports automatic jumping numbers.
5. The computer host directly output the marking, and the marking effect is neat and clear.
6. Compared with small models, it is more suitable for marking larger or heavier work-pieces.This machine can afford Max.120kgs weight.
7. The marking depth is 0.01-2mm, it can mark clear and standard letters and characters on the surface of metal materials,which will not be worn for a long time.
Technical Data:
Machine Name
| Flange and Flywheel Edge Dot Peen Marking Machine
|
Model
| PEQD-250E
|
Working Area
| 150mm×100mm, 200mm×100mm
|
Marking Depth
| 0.01~2mm
|
Marking Speed
| ≤50mm/second (for characters height of 3mm or 3-4 numbers /second)
|
Lifting Range
| 0-300 mm
|
Chuck Diameter
| Standard 200mm;
Optional: 125mm/160mm/300mm
|
Repeated Accuracy
| 0.01 mm
|
Pin Hardness
| HRC 92
|
Power Supply
| 220V±10％, 50Hz
|
Air Pressure
| 0.2-0.6 Mpa
|
Machine Power
| ≤400 W
|
Working Environment
| -5～40 ℃
|
Weight
| 200 Kgs
|
Dimensions
(L×W×H)
| Controlling Cabinet
| 1200×580×560(mm)
|
Pin Head
| 920×420×1300(mm)
|
>>
