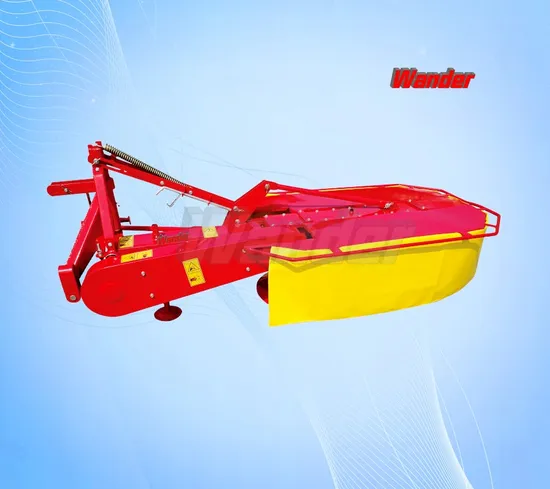

CE Approved Tractor Pto Drum Mower Dm135, Rotary Mower

Product Description

Product Description
Drum hay mower is an ideal product for farmers and owners of animal husbandries.
The blade location on the outside of large diameter drums creates very high blade speed,efficiently cutting just ablut any type of grass or forage.
The drums are precisely balanced for a smooth,vibration-free run.
Tough,long lasting,easy-to-replace wear discs are freewheeling at the bottom of the
mower drums.
The carefully selected suspension spring reduces down pressure.
Switching from working to transport position is effortless.On models 165 and 185,
just swing the mower back( no hydraulic outlets required on the tractor).
The breakaway safety ssystem protects the mower when a drum hits an obstacle.
blades are reversible and twisted for a high quality cut and increased safety.
Blades are mounted on large diameter pins and retained by a proven quick-release
system for quick change.

Product Parameters

SPECIFICATIONS OF DRUM MOWER
Model	DM125	DM135	DM165	DM185
Cutting Width	1250mm	1350mm	1650m	1850m
Cutting Height Adjust	30mm
Quantity of Cutting Disc	2
PTO Speed(r/min.)	540
Disc Speed(r/min.)	1620
Quantity of Cutting Knife	6
Cutting Knife Size(mm)	100x47x3
Knife Type	65MN
Working Efficiency(km/h)	15
Packing Size(mm)	1510X870X740	1510X870X740	1650X950X730	1850X1110X750
Overall Size(mm)	2300X800X1050	2400X850X1050	3000X900X1100	3200X1000X1100
Gross Weight(kg)	344	360	415	490
Driven Power	tractor PTO
Power Required(HP)	25-40	35-50	45-60	45-60

Main Features:
1. The DM Series Drum Mower Is Great For Medium To Large Compact Tractors
2. The DM Series Drum Mowers Are Proven To Be One Of The Most Durable Designs
Among All Hay Harvesting Mowers. Powder Painted With All Moving Components
Balanced For Long Life. CE Safety Approved
3. Exterior Hydraulics Are Not Needed For Ttransport Position
4. Quick Change Blades-3 Per Drum
5. Safety Release To Prevent Damage
6. Belts Driven & With Quick Change Blades
7. Mows very fast
8. Mows Up To 6 Acres An Hour And Will Not Clog Up In Any Conditions
9. Factory Direct ! We are manufacture of the drum mower. Best Price will be sent to you once there is any feedback.

---
