Product Details
Product Description
Product Description

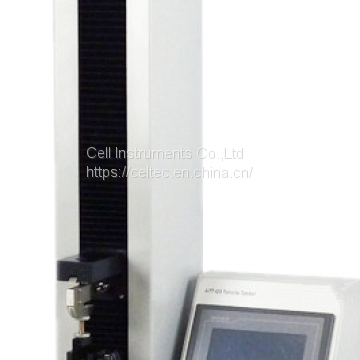

Plastics, rope and yarn tensile and tension testercan be used for the tensile and compression test of rubber, plastics, textile,waterproof material, cable, nettle, metal wire, metal bar and metal plate, etc.Multiple functions of test force display, adjustable test speed, auto stop atbreaking and peak value holding, etc, are also available.
Plastics, rope and yarn tensile and tension tester Features:
1. High precision digital speed regulating system and precision lead-screw
2. Easy sample loading.
3. Three test modes of tensile, compressionand peeling
3. Key operation and LCD real time display.
4. overcurrent, overvoltage and overloadprotection
5. Micro printer(optional)
Plastics, rope and yarn tensile and tension tester Technical Data
TestRange 0-2KN
Force Accuracy Better than ±1%
Displacement Resolution 0.01mm
Displacement Accuracy Better than ±1%
Tensile Stroke 1000mm
Compression Stroke 1000mm
Stroke 1000mm
Displacement Speed Control Range 1mm/min～500mm/min(normal)
DisplacementSpeed Control Accuracy Better than ±1%
TestingMachine Grade Better thangrade 1
DeformationIndication Error ≤±（50+0.15L）
Standards
ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
>>
