Hydraulic Cup Thermoforming Machine Plastic Cup Making Machine

Product Description

I. Feature & parameter
- The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
- Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
- Completely automatic and fast production speed. Different products are available by changing different moulds.
- Adopt imported famous brands of electric and pneumatic fittings, stable running, relia
ble quality and long life.
- The whole machine is compact, one mould has all functions, such as pressure giving, forming, cutting, cooling and finished product blowing.

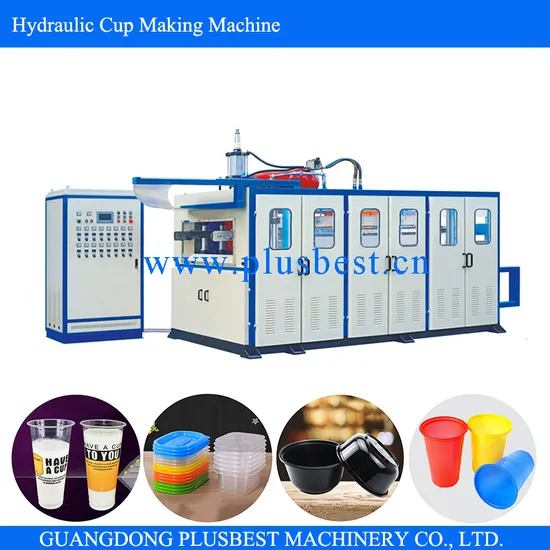

II. Machine photo
III. Technical Data

Mode No.	PBH-660	PBH-700	PBH-720	PBH-730	PBH-750
Available material	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE
Formed area(mm)	660×320	700×350	720×450	730×480	750×500
Formed depth(mm)	120/180	120/180	120/180	120/180	120/180
Speed(cycles/min)	20-35	20-35	20-35	20-35	20-35
Max. sheet width(mm)	660	700	720	730	750
Thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0
Total power(kw)	≤45	≤50	≤55	≤65	≤65
Air wastage(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Water wastage(m³/h)	≤0.5	≤0.5	≤0.5	≤0.6	≤0.6
Dimension(mm)	5500×2300×2400	5800×2500×2600	6200×2800×2600	6200×2800×2600	7200×3000×2600
