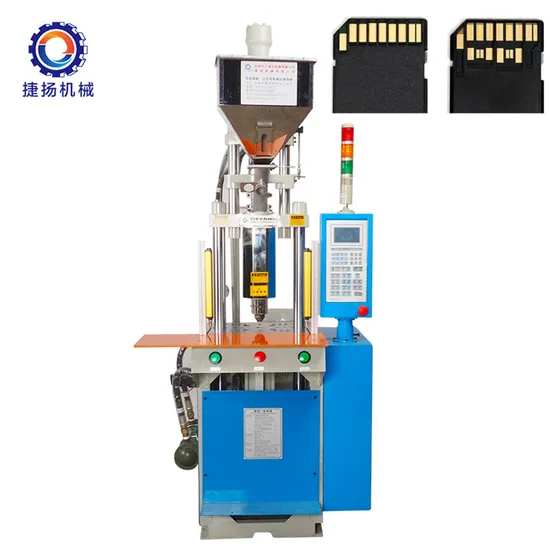

Making SD Memory Card Plastic Injection Molding Machine

Product Description

Making SD Memory Card Plastic Injection Molding Machine
Product Description:
Advantage:
Product:
Specification of vertical plastic Injection molding machine:

MODEL	JY-160S2
		UNIT
INJECTIONUNIT	Screw Diameter	mm	Φ22	Φ26	Φ28
	Theoretical Injection Volume	cm³	44	61.5	71.4
	Injection Weight	g	41.6	58	67.5
	Max.Injection Pressure	Mpa	161.6	115.7	99.7
	Injection Rate	cm³/s	31.5	44	51.08
	Injection Speed	mm/s	83
	Injection Stroke	mm	116
	Screw Speed Rotation	r.p.m	0-170
	NO.of Temperaturecontrol		3
	Nozzie Out From Platens	mm	≥25
CLAMPINGUNIT	Clamping Force	KN(tf)	147(15)
	Clamping Stroke	mm	185
	Min.Mold Thickness	mm	25/75
	Max.Opening	mm	210/260
	Distance Between Tie Bas(L*W)	mm	270
	Max.Mould Size(L*W)	mm	250*200
	Platen Size(L*W)	mm	250*250
	Ejector Distance	mm	25
	Ejector Force	KN(tf)	12.7(1.3)
OTHERS	System Pressure	Mpa	13.7
	Oil Tank Capacity	L	68
	Electric Power	KW(HP)	2.2(3)-6P
	Heater Power	KW	2.2
	Machine Dimensions(L*W*H)	m	1.14*0.865*2.4
	Machine Weight	tf	0.6

Product Features:
1)Straight screw ejected assembly.
2)Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

Application:

vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc
Packaging&Shipping:
Package 1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time 3-25 days after confirming order,detail delivery date should be decided according to production season and order quantity
Certification:
Our Service:
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose Jieyang Machinery Co., Ltd.?

A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

If necessary, please contact us,we will provide a professional production plan for you.

---
