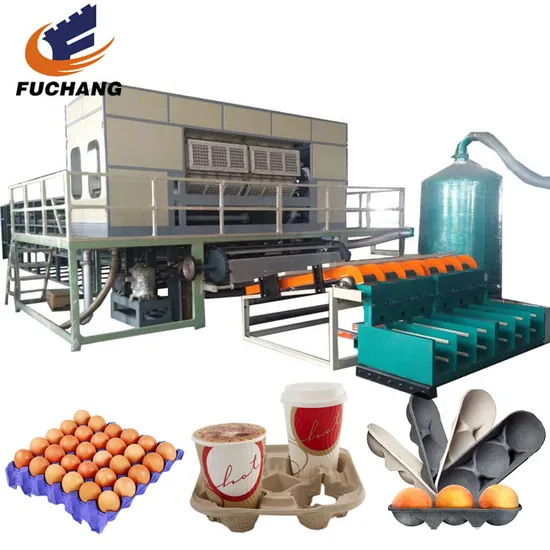

Egg Tray Making Machine Egg Tray Carton Fully Automatic Egg Tray Machine

Product Description

Product Description 5500-6000Pcs per hour Paper Egg Tray Making machine,Model:FC-ZMG6-48
Rotary Type Pulp Mouldign Machine
Type:4Ribs,8Ribs,12Ribs
Model:FC-ZMG3-24,FC-ZMG4-32,FC-ZMG6-48
Capacity:3000pcs/hr,4000pcs/hr,6000pcs/hr
Material:Waste paper+Water
Final Product:Paper Egg Tray,Paper Egg Carton,Paper cup Holder,Paper shoe insert,wind tray,Apple tray,Fruit Tray etc
Manufacturer:Longkou Fuchang Packing Machinery Co.,Ltd
Address:Youth-tech Pioneer Park,Langao,Longkou,Shandong Province,China Detailed Photos
Product Parameters

Model:	FC-ZMG3-12	FC-ZMG3-24	FC-ZMG4-16	FC-ZMG4-32	FC-ZMG6-48
Capacity Pcs/hr:	2000-2500	3000	2500-3000	4000	5500-6000
Forming mold QTY:	12	24	16	32	48
Transfer mold QTY:	3	3	4	4	6

PULPING SYSTEM
Turn waste paper,such as old newspaper,magazines and cartons,into pulp of certain consistency through pulping,screening,and additive chemical application for forming ,main equipment,pulper,pulp tank,water tank,pulp pump,water pump,agitator consistency controller,control cabinet,etc.
FORMING SYSTEM
With a different mold,Our machine can produce different product,such as Egg Trays,Egg Box/Carton,Vegetable trays,Fruit trays,Can trays,seedling tray,Fan trays,Electricity trays,etc
DRYING SYSTEM
The main energy can be chosen from 0#diesel oil,Natrual gas,LPG,Heavy oil,Coal,Electricity etc.Depening on local cost
STACKING&PACKING SYSTEM
Count the number of dried products ,separate them and stack them up for automated packing
Mold System
The molds can be made from aluminum, copper, plastic. According to your requirement. Our mold is durable and easy for maintenance and replacement
Certifications
Company Profile Packaging & Shipping FAQ 1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming machine exclude the parts of quick-wear. The spare parts will be provided according to the client requirement.2.The pre-production:we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc. 3.The installing issue: fuchang will send engineers to customers' place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.4.The price:We are a manufacturer and we can provide the considerate price and make sure the quality .

---
