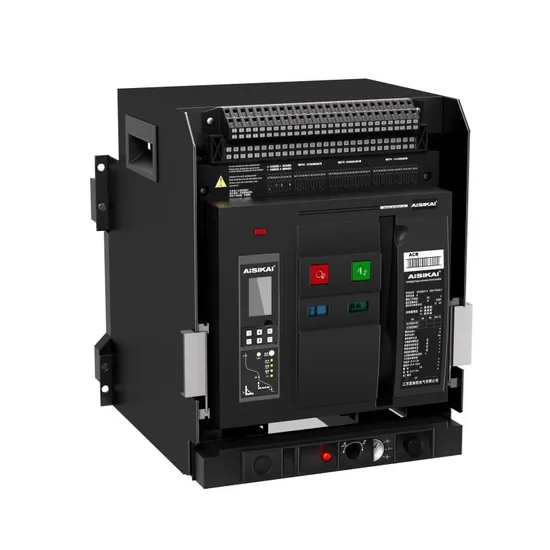

Aisikai 3200A 4p Air Circuit Breaker Acb for Generator Set with CE

Product Description

Company	AISIKAI ELECTRIC
Model	UNIVERSAL AIR CIRCUIT BREAKER
Design serial	Standard type
Frame rating current (A)	2000/2500/ 2500U /3200 /4000 /6300
Number of poles	3P: 3 poles ;4P: 4 poles;3P+N( 3P + connect to external neutral ) line current transformer
Intelligent controller	L type: LED display current, overload long/short delay protection
	M: LCD type, LCD screen displaying current and voltage, adjust by buttons
	H: LCD communication type, adding communication function to M type
Installation method	C:Drawout type;G: Fixed type
Optional Accessories	Under voltage tripper, vertical inlet and outlet busbars, mechanical interlocking,door interlocking,breaking position key lock, external current transformer of neutral line N, DC power module, phase partition
Rated operational current(A)	630,800,1000,1250,1600,2000(2000A frame)
	2000,2500(2500A,2500U frame)
	2000,2500,2900,3200(3200A frame)
	3200,3600,4000( Capacity-expanded type 4000 frame)
	4000,5000 6300 (6300A frame)
	3200,3600,4000(Standard type 4000 frame)
Frequency	50Hz/60Hz

TECHNICAL PARAMETER AND PERFORMANCE
Model	Frame rating current Inm A	Rated current In A	Rated impulse withstand voltage Uimp kV	Rated Ue V	Rated limit short-circuit breaking capacity Icu kA o-co		Rated service short-circuit breaking capacity Ics kA o-co-co		Rated short-time withstand current Icw KA(1s) delay 0.4s o-co		Power loss (In) W
					400V	660/690V	400V	660/690V	400V	660/690V	Fixed	Drawout
ASKW1-2000	2000	630	12	AC 50Hz /60Hz 400V 690V	85	65	65	65	65	65	40	80
		800									60	130
		1000									90	205
		1250									90	205
		1600									140	310
		2000									170	310
ASKW1-2500	2500	2500			100	70	80	70	80	70	260	510
ASKW1-2500U	2500	2500			100	70	80	70	80	70	170	400
ASKW1-3200	3200	2000			100	70	80	70	80	70	170	400
		2500									260	510
		2900									320	650
		3200									420	760
ASKW1-4000	4000	3200			100	70	80	70	80	70	430	780
		3600									440	790
		4000									450	800
ASKW1-6300	6300	4000			120	85	100	85	100	85	1225
		5000									1250
		6300									1625
1.Arc distance is zero. 2.In this form, the breaking capacities of upper inlet and lower inlet are same.

Since established in 2007, AISIKAI has been committed to the manufacture, research, development and marketing of the high-quality high and low voltage electric switches. Our product lines cover level 1,2,3 power distribution fields. We are awarded as the National High Tech Enterprise, Double-Soft Certified Enterprise (i.e., software product certified and software enterprise certified), Little Giant Science and Technology Enterprise of Jiangsu Province, and Contract-keeping and Trustworthy Enterprise.
We have invention patents, utility model patents and appearance patents. All of AISIKAI products have China Compulsory Certification (CCC) and China Quality Certification (CQC). From 2014, we have been recognized as Yangzhou City Engineering Technology Center and National Adopting International Standard Enterprise.
AISIKAI products have CE certification and IEC CB certification. We have passed the ISO9001 Quality Management System and ISO14001 Environment Management System, ISO45001 Occupational Health Management System, and SGS Global Qualified Supplier Authentication.
ASKW1 &ASKW2 series frame type universal circuit breaker is the first product of AISIKAI in the low voltage distribution,from 200A to 6300 A. Self-developed multi-functional intelligent liquid crystal controller.the Chinese menu in Windows structure makes the man-machine interface very friendly and easy to use.
Over the years, we have been focusing on the design, R&D and professional manufacturing of low-voltage electrical products, with customer satisfaction and expectations as the guide. Continuously improve product performance on the premise of safety and reliability. Advanced automated assembly line ensures timely delivery of products to customers. Strict quality standards ensure that every product is 100% qualified.

Dimensions Diagram
Inm	a mm	b mm	c mm
2000-3P/4P	306	173	346
2500(Economical)-3P/4P	306	173	346
2500(Residential power distribution type)-3P/4P	366	202.5	405
3200-3P/4P	366	202.5	405
4000-3P	366	202.5	405
4000-4P	306	173	346
6300-5000A/3P/4P	366	202.5	405
6300-6300A/3P/4P	366	202.5	405

A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee.
AISIKAI will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 3 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) What's about MOQ? Delivery time ?
1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
E) How to guarantee the quality of your products?
1) Strict detection during production one by one.
2) Strict inspection on products one by one before shipment and intact product packaging ensured.

---
